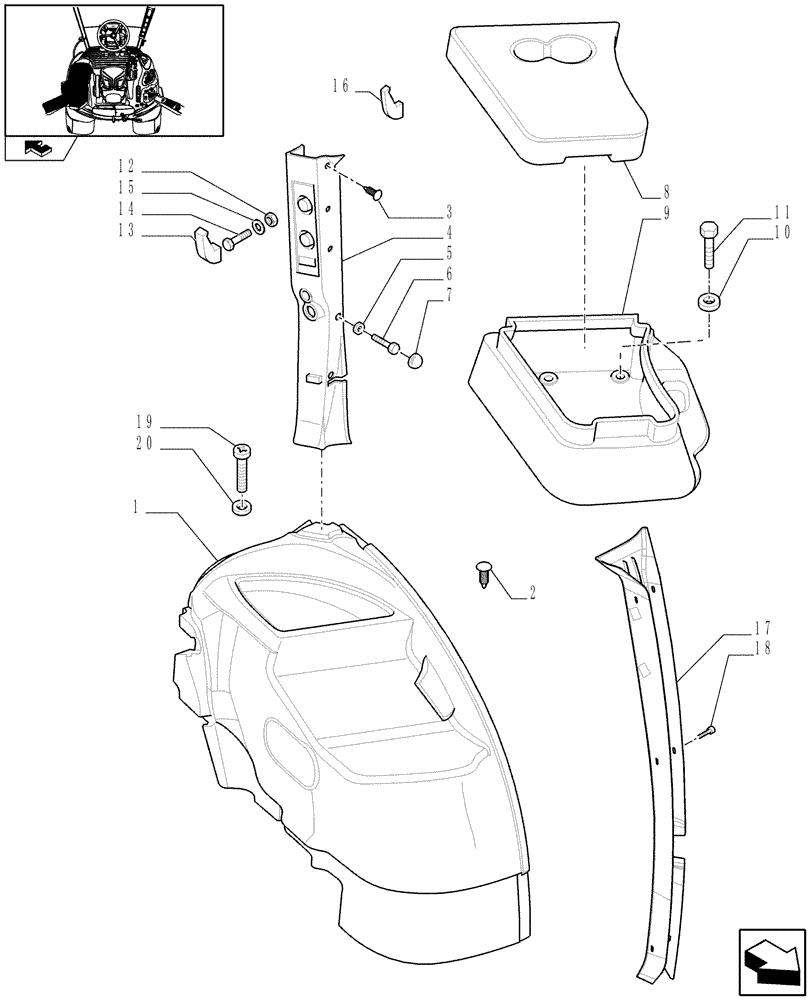

Запчасти Case IH PUMA 125 (1.93.0[01A]) - CONTROLS COVER - LH - D6742 (10) - OPERATORS PLATFORM/CAB

1

87591840

PADDING

LH, Serial Range: -C6754

1шт.

1

84242779

PADDING

LH, Start Serial: D6754

1шт.

1

87591843

PADDING

LH, Serial Range: -C6754

1шт.

LH Front Storage Box, VAR.330869

1шт.

Instruction Seat with Belt. VAR.330719

1шт.

1

84242778

PADDING

LH, Start Serial: D6754

1шт.

LH Front Storage Box, VAR.330869

1шт.

Instruction Seat with Belt. VAR.330719

1шт.

2

87539768

ANCHOR,Button Hd, 4.70 mm x 11.00 mm, Nylon

2шт.

2

81870039

FASTENER,M8 x 1.5 x 22mm

2шт.

3

82023460

STUD,M7.85 x 19.50mm, Plastic

4шт.

4

84295536

PADDING

LH

1шт.

5

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

6

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

7

82012814

CAP,M10

2шт.

8

82031622

SOFT TRIM

1шт.

LH Front Storage Box, VAR.330869

1шт.

9

82027464

TOP COVER

1шт.

LH Front Storage Box, VAR.330869

1шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

LH Front Storage Box, VAR.330869

1шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

LH Front Storage Box, VAR.330869

1шт.

12

83903071

NUT,Hex, Thin, M4

1шт.

13

82872313

COAT HOOK

1шт.

14

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

1шт.

15

82935771

WASHER,5.6mm ID x 12.7mm OD x 1.25mm Thk

1шт.

16

83904461

RETAINER

1шт.

17

84222160

SOFT TRIM

1шт.

18

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

6шт.

19

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

3шт.

20

14496507

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.
