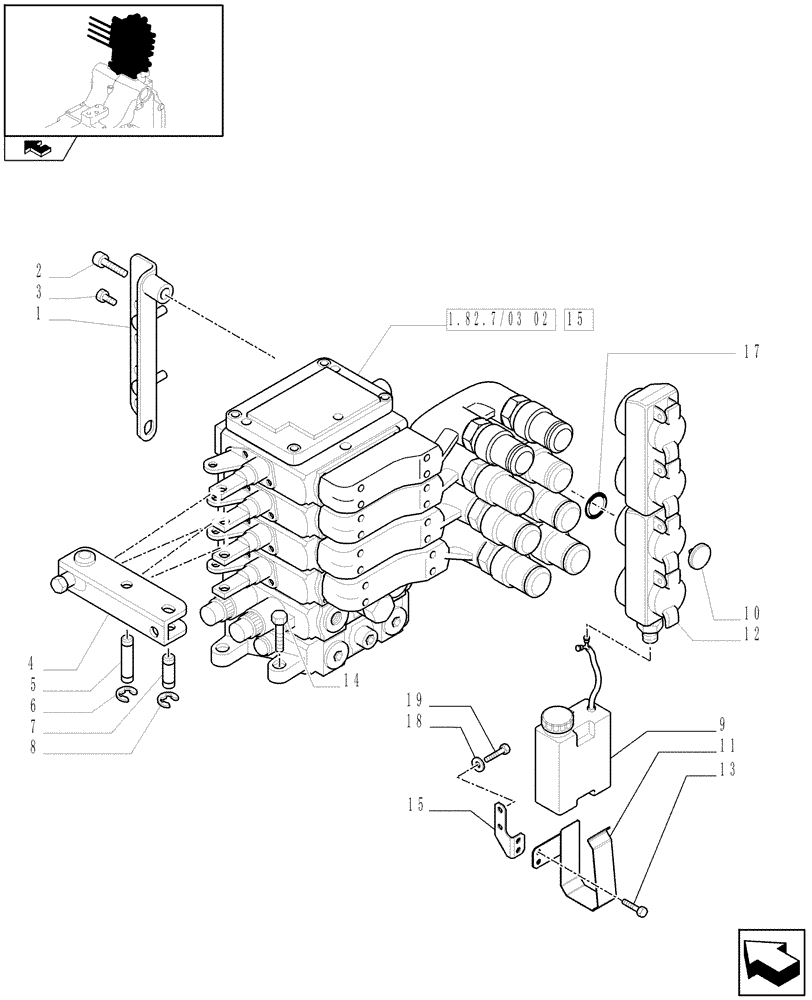

Запчасти Case IH PUMA 125 (1.82.7/03[01A]) - 4 MECHANICAL REAR REMOTE CONTROL VALVES - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6788 (VAR.333845) (07) - HYDRAULIC SYSTEM

1

87358965

STOP

1шт.

2

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

3

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

4

87358094

LEVER

4шт.

5

5193177

PIN,6mm OD x 29.48mm L

4шт.

6

11063971

SPRING CLIP,M6

D=6

8шт.

7

5113008

PIN,8mm OD x 26mm L

D=8

4шт.

8

11065676

SNAP RING,M8, Ext

8шт.

9

84284864

RESERVOIR, HYDRAULIC

1шт.

10

82029895

DISC,20mm D, Black

Black

8шт.

11

84312030

SUPPORT

1шт.

12

84293792

DUST CAP

Incl. 10, 17

2шт.

13

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

14

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

15

87311423

CONTROL VALVE

ASSY

1шт.

2 Not Configurable + 2 Configurable Control Valves

1шт.

16

84311423

SUPPORT

1шт.

17

14454580

O-RING,34.65mm ID x 1.78mm

4шт.

18

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

19

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
