Запчасти Case IH PUMA 125 (1.82.7[01A]) - 2 MECHANICAL REAR REMOTE CONTROL VALVES - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6788 (07) - HYDRAULIC SYSTEM

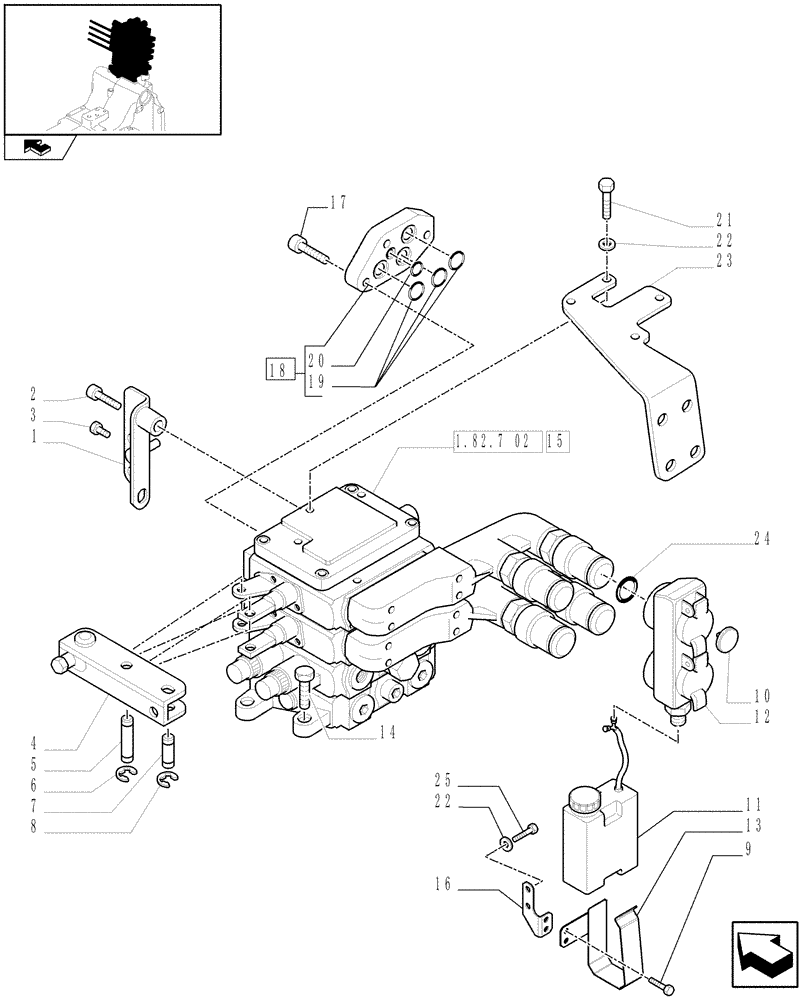

Схема запчастей Case IH PUMA 125 - (1.82.7[01A]) - 2 MECHANICAL REAR REMOTE CONTROL VALVES - DISTRIBUTOR, COVER AND OIL COLLECTOR - D6788 (07) - HYDRAULIC SYSTEM
3
22
1
25
6
24
13
2
5
15
4
12
11
8
22
14
9
19
16
20
18
10
home
1.82.7 02
17
7
21
23

Артикул

Название

Примечание

Количество

1

87390554

STOP

1шт.

2

14306730

SCREW,M8 x 40mm, Cl 10.9

1шт.

3

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

4

87358094

LEVER

2шт.

5

5193177

PIN,6mm OD x 29.48mm L

2шт.

6

11063971

SPRING CLIP,M6

M6

4шт.

7

5113008

PIN,8mm OD x 26mm L

D=8

2шт.

8

11065676

SNAP RING,M8, Ext

4шт.

9

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

10

82029895

DISC,20mm D, Black

Black

2шт.

11

84284864

RESERVOIR, HYDRAULIC

100MM Wide, Serial Range: -C7117

1шт.

11

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

12

84293791

DUST CAP

Incl. 10, 24, Serial Range: -C7117

2шт.

12

84319182

DUST CAP

Incl. 10, 24, Start Serial: D7117

2шт.

13

84312030

SUPPORT

1шт.

14

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

15

87546165

CONTROL VALVE

ASSY

1шт.

2 Not Configurable Control Valves

1шт.

16

84311423

SUPPORT

4шт.

17

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

18

5199101

COVER

1шт.

19

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

20

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

21

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

22

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

23

87499713

BRACKET

1шт.

24

14454580

O-RING,34.65mm ID x 1.78mm

2шт.

25

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 28
