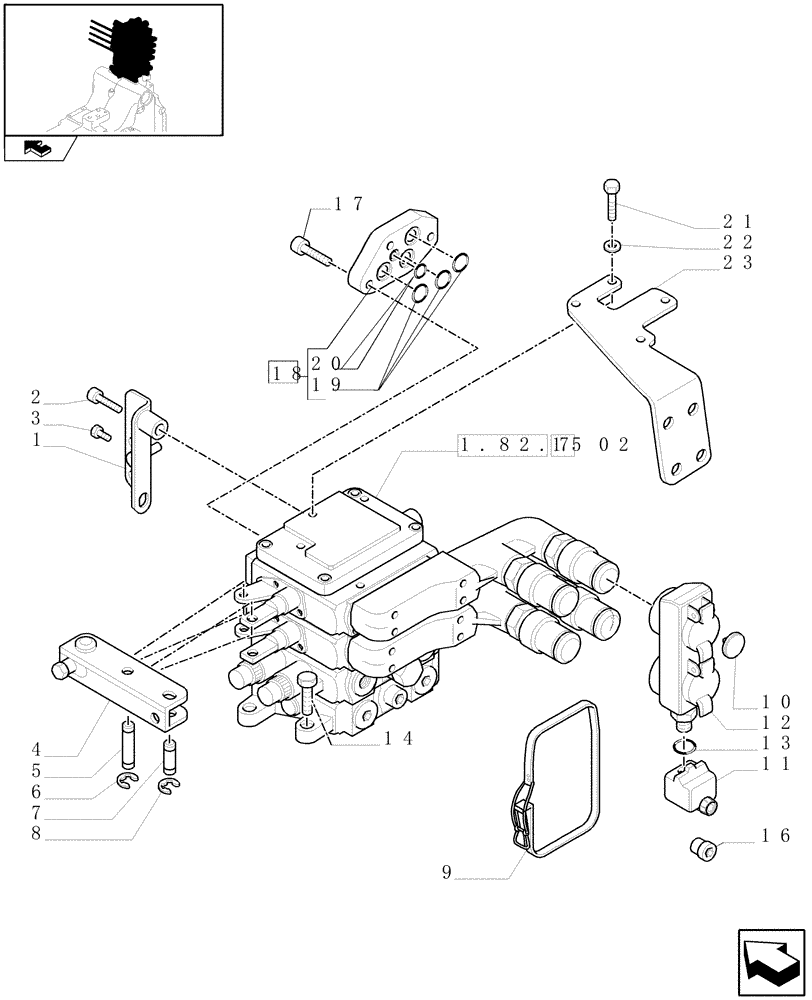

Запчасти Case IH PUMA 125 (1.82.7[01]) - 2 MECHANICAL REAR REMOTE CONTROL VALVES - DISTRIBUTOR, COVER AND OIL COLLECTOR - C6788 (07) - HYDRAULIC SYSTEM

1

87390554

STOP

1шт.

2

14306730

SCREW,M8 x 40mm, Cl 10.9

1шт.

3

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

4

87358094

LEVER

2шт.

5

5193177

PIN,6mm OD x 29.48mm L

2шт.

6

11063971

SPRING CLIP,M6

M6

4шт.

7

5113008

PIN,8mm OD x 26mm L

D=8

2шт.

8

11065676

SNAP RING,M8, Ext

4шт.

9

82031973

SPRING CLIP

1шт.

10

82029895

DISC,20mm D, Black

Black

2шт.

11

84161329

BOTTLE

100MM Wide

2шт.

12

87733574

DUST CAP

Incl. 10

2шт.

13

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

14

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

15

87546165

CONTROL VALVE

ASSY

1шт.

2 Not Configurable Control Valves

1шт.

16

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

17

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

18

5199101

COVER

1шт.

19

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

20

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

21

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

22

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

23

87499713

BRACKET

1шт.
