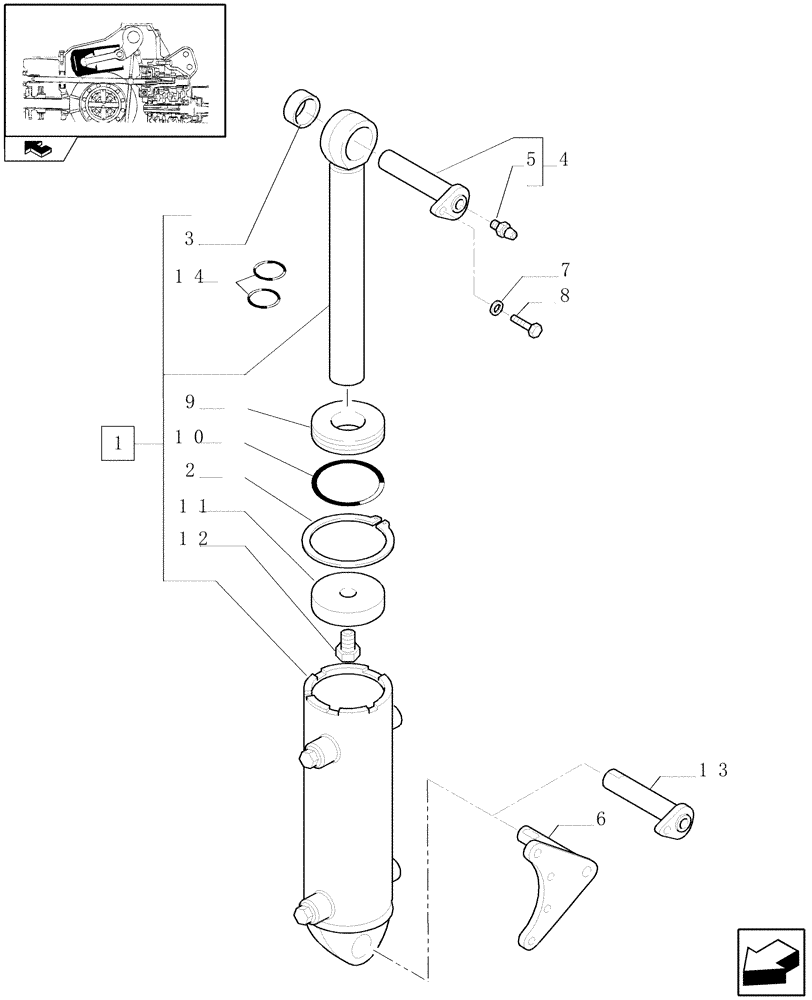

Запчасти Case IH PUMA 125 (1.82.6) - HYDRAULIC POWER LIFT - CYLINDER AND PINS (07) - HYDRAULIC SYSTEM

1

87392350

LIFT CYLINDER,Double Acting, 40mm Rod, 177mm Stroke

1шт.

2

47137400

RING

1шт.

3

5198652

BUSHING

1шт.

4

5190967

PIN,34.7mm OD x 96mm L

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

6

47132137

PIN

LH

1шт.

Puma 125, Puma 140

1шт.

6

47132135

PIN

RH

1шт.

Puma 125, Puma 140

1шт.

7

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

2шт.

8

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

9

87392367

CYLINDER HEAD

1шт.

10

47137401

SNAP RING

1шт.

11

87392365

PISTON

1шт.

12

87385633

BOLT

1шт.

13

47130245

PIN,34.7mm OD x 224mm L

2шт.

Puma 155

1шт.

14

87392361

SEAL KIT

1шт.
