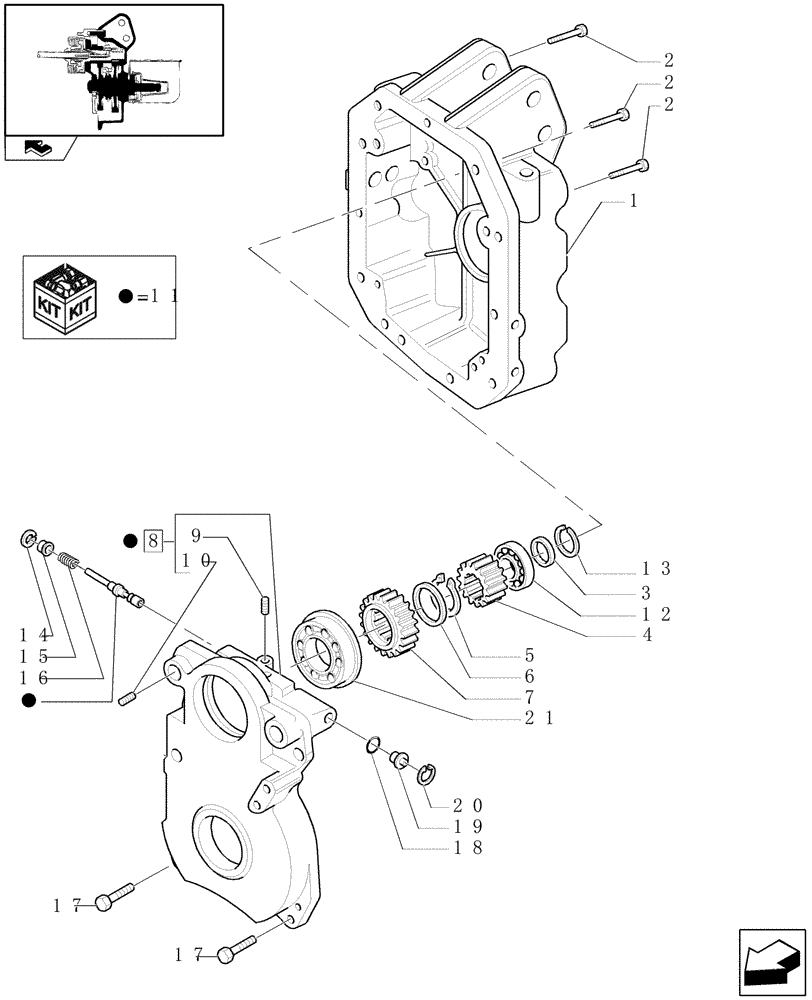

Запчасти Case IH PUMA 125 (1.80.1/01[01]) - POWER TAKE-OFF 540/1000 RPM WITH REVERSABLE SHAFT - CASING, GEARS AND SUPPORT (VAR.330800) (07) - HYDRAULIC SYSTEM

1

47131253

CASING

1шт.

2

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

1шт.

2

15981024

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

M16 x 1,.5 x 55

2шт.

2

15981624

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

8шт.

3

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

4

5197545

GEAR,17T, 40T

1шт.

5

5138419

SNAP RING,M50

D=50

1шт.

6

5192262

THRUST WASHER,50.10mm ID x 60.00mm OD x 2.00mm

1шт.

7

5197546

GEAR

1шт.

8

47126419

SUPPORT

1шт.

9

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

3шт.

10

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

11

47128641

SUPPORT

ASSY

1шт.

12

5151460

ROLLER BEARING,35mm ID x 72mm OD x 17mm W

35 x 72 x 17

1шт.

13

5154307

SNAP RING,M35

1шт.

14

13420576

SNAP RING,M16, Int

1шт.

15

47127951

CAP COVER

1шт.

16

47123788

SPRING,15mm OD x 87.5mm L

1шт.

17

15541221

SCREW,Hex, M12 x 1.25 x 70mm, Cl 8.8

2шт.

17

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

18

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

19

47128597

PLUG,6mm ID x 19mm OD x 13mm L

1шт.

20

11057776

SNAP RING,M19, Int

1шт.

21

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

65 x 120 x 23

1шт.
