(1.75.6/04) - EUROPE VERSION WITH FULL COVER FENDERS - REAR COMBINATION LAMPS (VAR.336007)

Запчасти Case IH PUMA 125 (1.75.6/04) - EUROPE VERSION WITH FULL COVER FENDERS - REAR COMBINATION LAMPS (VAR.336007) (06) - ELECTRICAL SYSTEMS

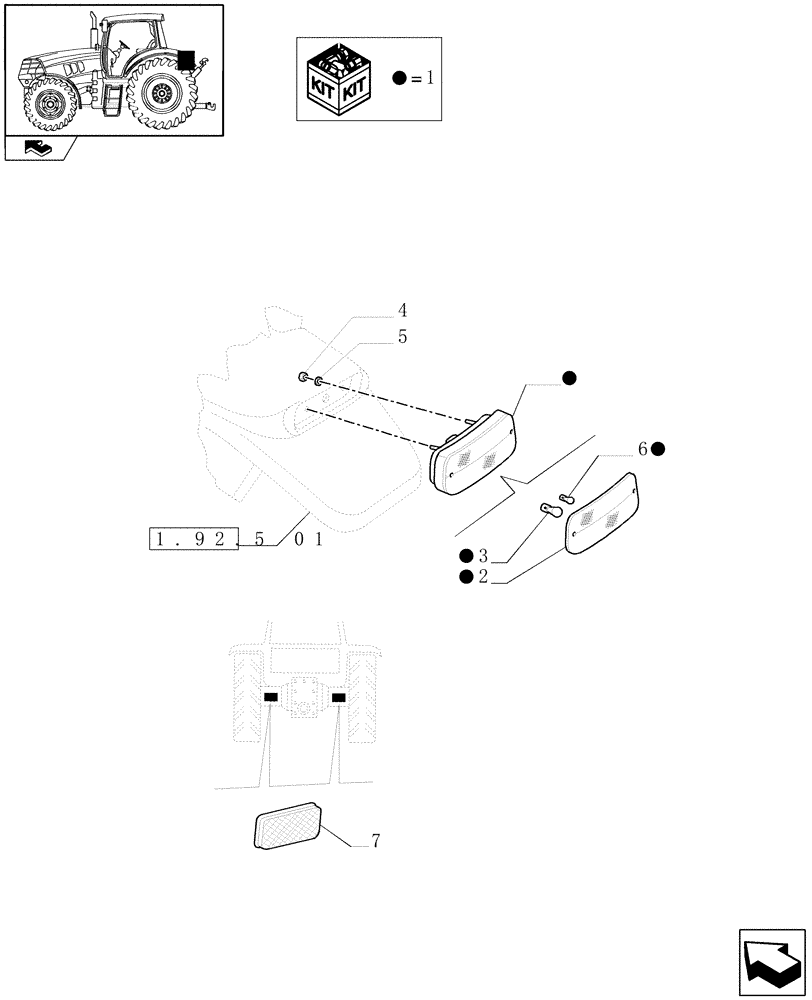

Схема запчастей Case IH PUMA 125 - (1.75.6/04) - EUROPE VERSION WITH FULL COVER FENDERS - REAR COMBINATION LAMPS (VAR.336007) (06) - ELECTRICAL SYSTEMS
home
1.92.5 01
1
6
1
4
1
3
1
2
1
5
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87536434

TAIL LAMP,12V, 21W, Amber/Red

ASSY, RH

1шт.

1

87536435

TAIL LAMP,12V, 21W, Amber/Red

ASSY, LH

1шт.

2

87357816

LENS

RH, Red/Amber

1шт.

2

87357815

LENS

LH, Red/Amber

1шт.

3

529068

BULB,#1156, 12V, 21W

2шт.

4

15896211

NUT,M6, Cl 8

4шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

6

14144690

BULB,P21/5W, 12V, 21/5W

12V, 21/5W

2шт.

7

82002957

REFLECTOR

2шт.
