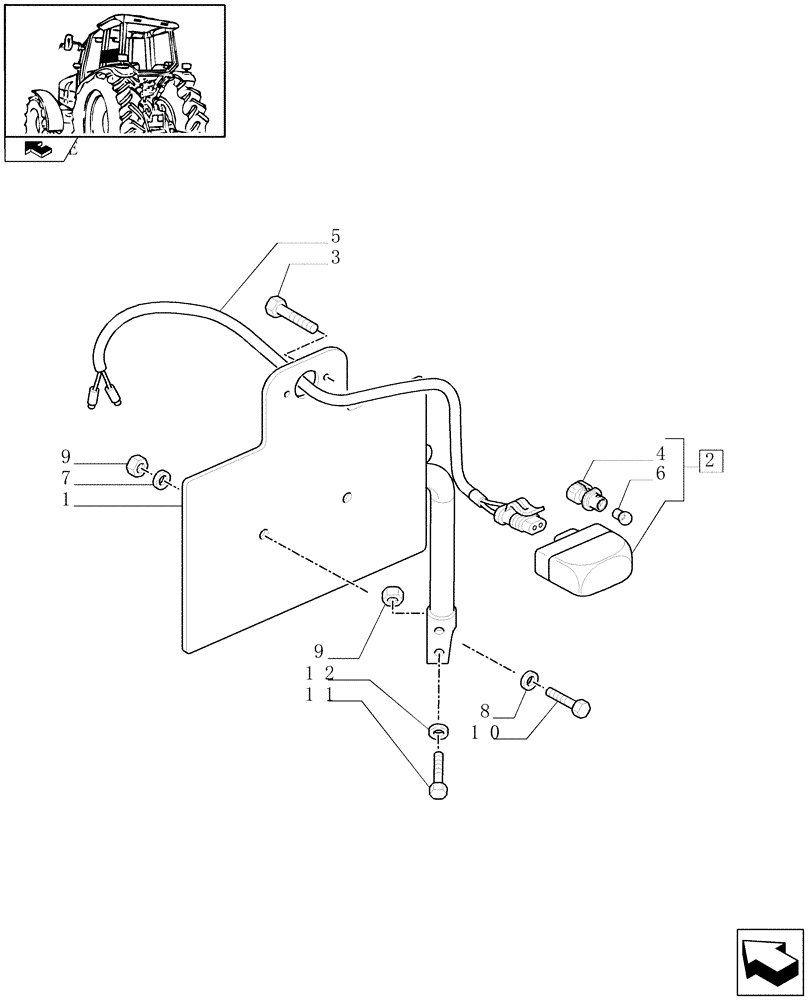

Запчасти Case IH PUMA 125 (1.75.6/02) - LICENSE PLATE MOUNTED ON MUDGUARD (VAR.333958) (06) - ELECTRICAL SYSTEMS

1

82036417

BRACKET

1шт.

2

87301999

NUMBER PLATE LAMP

1шт.

3

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

2шт.

4

87304742

HOLDER

1шт.

5

82035389

WIRE HARNESS

Licence Plate

1шт.

6

14144190

BULB,W5W, 12V, 5W

12V, 5W

1шт.

7

10571579

LOCK WASHER,M6

2шт.

8

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

10

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

2шт.

11

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

12

14496404

WASHER,M6 x 12 x 2 Thk

2шт.
