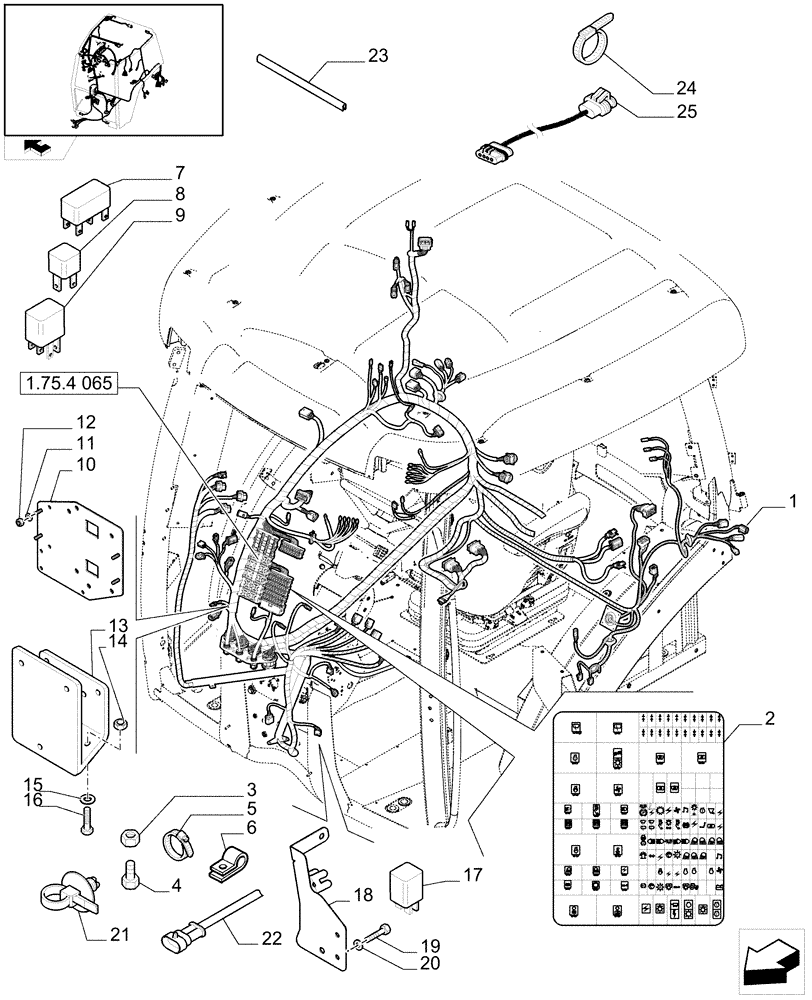

Запчасти Case IH PUMA 125 (1.75.4[06]) - CAB CABLE AND RELATIVE PARTS (06) - ELECTRICAL SYSTEMS

1

84194383

WIRE HARNESS

1шт.

2

87738071

DECAL

1шт.

2

84200081

DECAL

1шт.

3

83958007

NUT,M8, G8

1шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

2шт.

4

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

2шт.

5

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

5

82013031

CABLE TIE,193mm L

CABLE STRAP

3шт.

5

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

5

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

6

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

7

87304226

RELAY,12V, Combined, Black

Wiper Timer

1шт.

8

82013124

RELAY,12V, 30A

30A

3шт.

8

82030798

RELAY,12V, 70A

70A

3шт.

9

82023238

RELAY,12V, 20A

1шт.

10

87325625

SUPPORT

Relay Mounting

1шт.

11

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

D=6

4шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

13

87314581

BRACKET

Module Mounting

1шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

M8

4шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

D=8

3шт.

16

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

M8 x 16

2шт.

17

82017871

RELAY,12V, 20A

2шт.

18

87597230

SUPPORT

1шт.

19

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

20

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

21

82033028

CABLE TIE,170mm L

1шт.

22

82034343

WIRE HARNESS

1шт.

Ground Speed PTO Link

1шт.

23

87617359

PROTECTOR

, Serial Range: -C7166

1шт.

23

84545777

PROTECTION STRIP

, Start Serial: D7166

2шт.

23

87617359

PROTECTOR

1шт.

24

82012869

CABLE TIE,300mm L, Nylon, Black

5шт.

25

84538374

WIRE HARNESS

1шт.
