(1.75.1/03) - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE (VAR.335782-339782)

Запчасти Case IH PUMA 125 (1.75.1/03) - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE (VAR.335782-339782) (06) - ELECTRICAL SYSTEMS

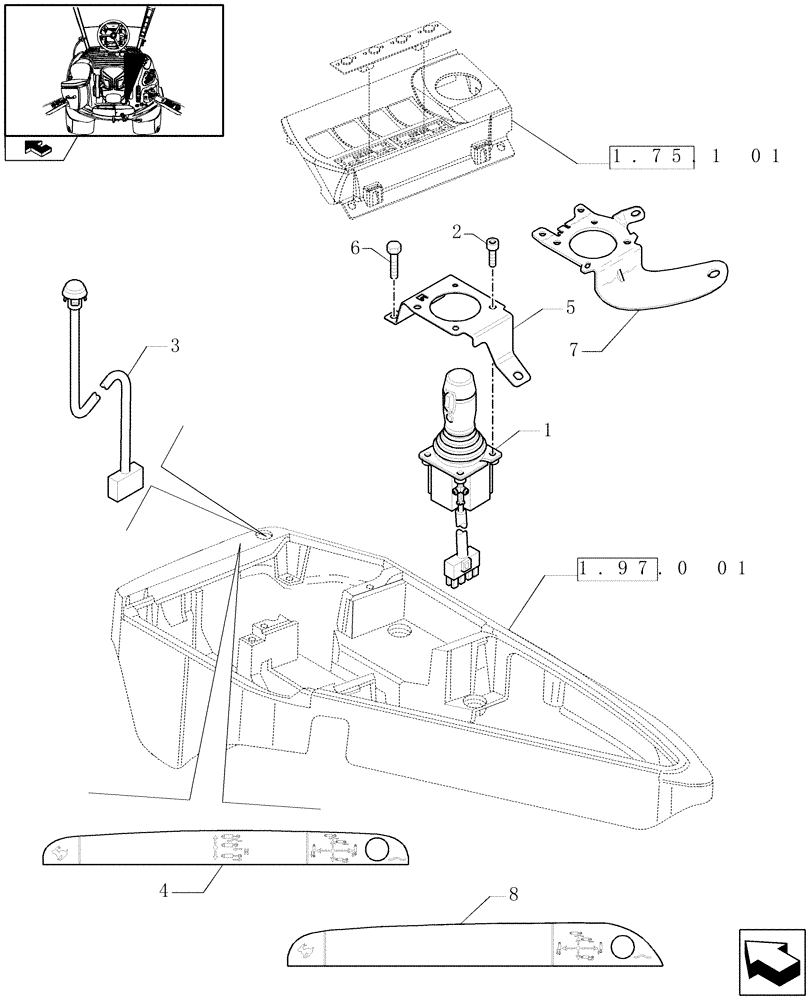

Схема запчастей Case IH PUMA 125 - (1.75.1/03) - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE (VAR.335782-339782) (06) - ELECTRICAL SYSTEMS
4
1
8
7
1.97.0 01
home
1.75.1 01
2
3
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84208738

JOYSTICK

1шт.

84208738R

REMAN-JOYSTICK

PUMA 125, PUMA 140, PUMA 155 ALL (11/09-)

1шт.

84208738C

CORE-JOYSTICK

Return Number

1шт.

2

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

3

87485775

SWITCH ASSY

1шт.

4

84126448

DECAL

1шт.

Electrohydraulic Joystick with Rocker Switch and 1 Button (LH Side Position on Command Arm), VAR.339782

1шт.

5

84202338

BRACKET

1шт.

Electrohydraulic Joystick with Rocker Switch and 1 Button (LH Side Position on Command Arm), VAR.339782

1шт.

6

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

7

84150720

HOLDER

1шт.

Electrohydraulic Joystick with Rocker Switch and 1 Button for Mechanical Rear Remotes, VAR.335782

1шт.

8

84126450

DECAL

1шт.

Electrohydraulic Joystick with Rocker Switch and 1 Button for Mechanical Rear Remotes, VAR.335782

1шт.
