(1.75.0/14) - INTEGRATED FRONT HPL WITH PTO - SOLENOID VALVE (VAR.333648-334648-335648)

Запчасти Case IH PUMA 125 (1.75.0/14) - INTEGRATED FRONT HPL WITH PTO - SOLENOID VALVE (VAR.333648-334648-335648) (06) - ELECTRICAL SYSTEMS

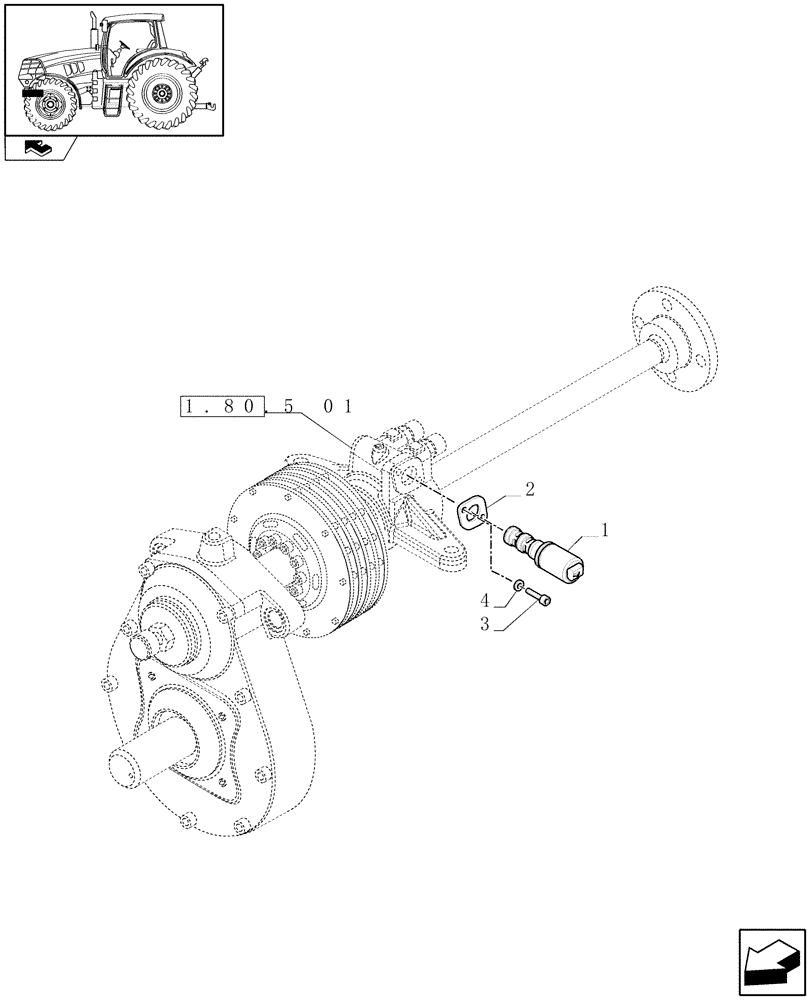

Схема запчастей Case IH PUMA 125 - (1.75.0/14) - INTEGRATED FRONT HPL WITH PTO - SOLENOID VALVE (VAR.333648-334648-335648) (06) - ELECTRICAL SYSTEMS
1.80.5 01
home
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87739558

SOLENOID VALVE,14W

Green Connectors

1шт.

1

87739558R

REMAN-SOLENOID

Green Connectors

1шт.

1

87739558C

CORE-SOLENOID

Return Number

1шт.

2

5194826

BRACKET

1шт.

3

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

4

11197771

LOCK WASHER

2шт.
