(1.42.0[01]) - STEERING CYLINDER PIPES AND POWER STEERING PIPES

Запчасти Case IH PUMA 125 (1.42.0[01]) - STEERING CYLINDER PIPES AND POWER STEERING PIPES (04) - FRONT AXLE & STEERING

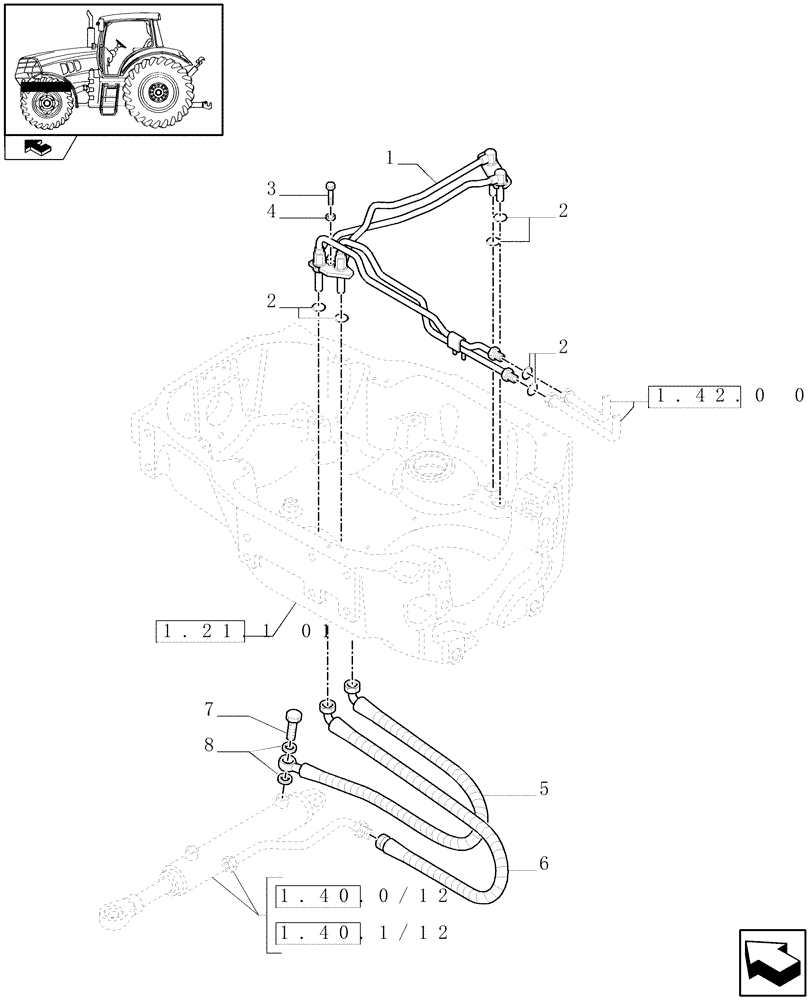

Схема запчастей Case IH PUMA 125 - (1.42.0[01]) - STEERING CYLINDER PIPES AND POWER STEERING PIPES (04) - FRONT AXLE & STEERING
2
6
5
7
4
1.40.0/12
1.40.1/12
1
8
1.21.1 01
3
1.42.0 02
home
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87699815

HYDRAULIC HOSE

Incl. 2

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

6шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

87635653

HOSE,675.00mm

RH

1шт.

5

87644884

HOSE,675.00mm

LH

1шт.

6

87352542

HOSE,550.00mm

2шт.

7

4864083

BANJO BOLT,M14 x 1.5 x 30mm

1шт.

8

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

2шт.
