(1.40.3/01) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFFER. LOCK, STEERING SENSOR AND BRAKES - BOX (VAR.330427)

Запчасти Case IH PUMA 125 (1.40.3/01) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFFER. LOCK, STEERING SENSOR AND BRAKES - BOX (VAR.330427) (04) - FRONT AXLE & STEERING

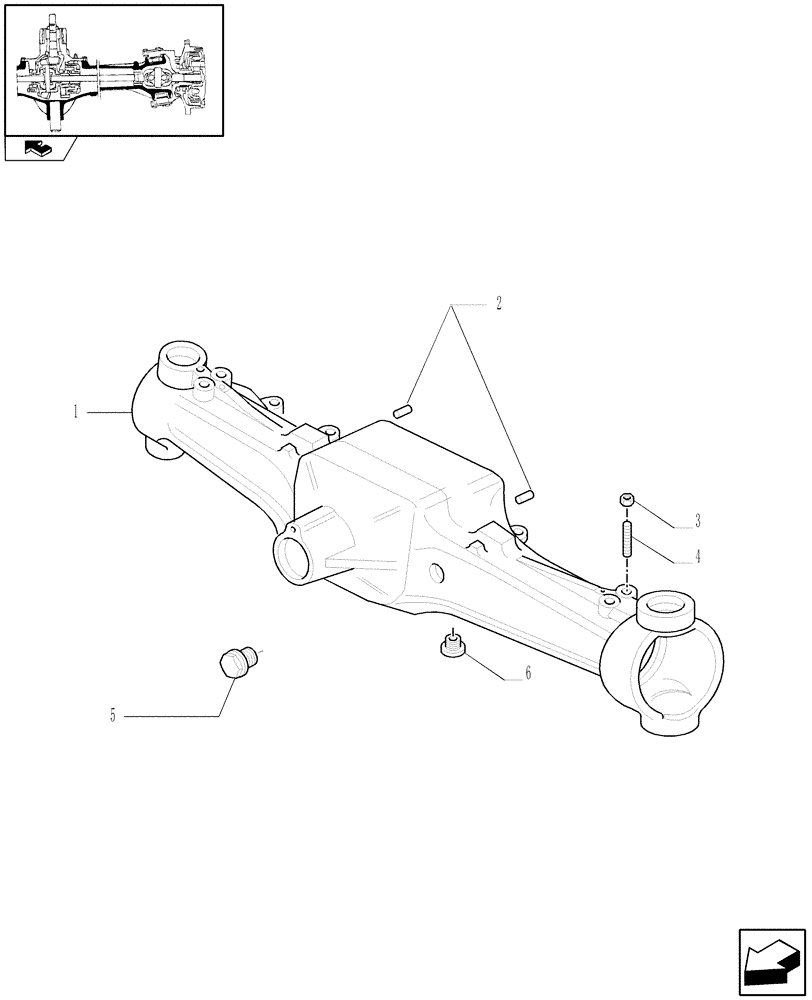

Схема запчастей Case IH PUMA 125 - (1.40.3/01) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFFER. LOCK, STEERING SENSOR AND BRAKES - BOX (VAR.330427) (04) - FRONT AXLE & STEERING
3
2
6
home
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87633190

AXLE HOUSING

Incl. 2

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

16101511

NUT,M12 x 1.25, Cl 8

2шт.

4

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

5

14324413

PLUG,M22 x 1.5

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.
