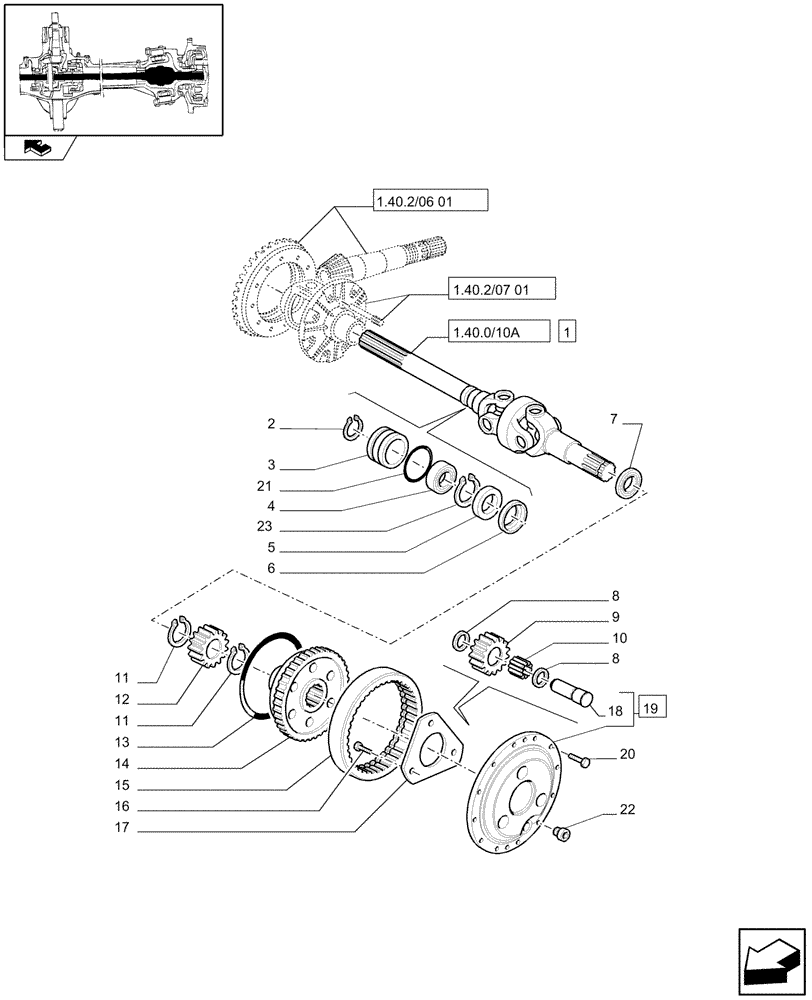

Запчасти Case IH PUMA 125 (1.40.2/10) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFFER. LOCK AND STEERING SENSOR - GEARS AND DIFF. AXLE (VAR.330414) (04) - FRONT AXLE & STEERING

1

84194811

SHAFT

ASSY, RH

1шт.

1

84194820

ARTICULATED SHAFT

ASSY, LH

1шт.

2

11068876

SNAP RING,M40, Ext

2шт.

3

84197406

BUSHING

2шт.

4

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40 x 68 x 15

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

45 x 60 x 16

2шт.

6

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

7

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

45 x 65 x 27

2шт.

8

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

9

5145497

PLANETARY GEAR,25T

6шт.

10

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

11

5140018

SNAP RING,M30, Ext

D=30

4шт.

12

5145501

SUN GEAR,16T

2шт.

13

5151438

LOCKING RING,222mm ID, Int

2шт.

14

84224948

NOTCHED DISK

2шт.

15

5191770

RING GEAR

2шт.

16

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

17

5152324

LOCKING RING,4mm Thk

2шт.

18

87304540

PIN,30.3mm OD x 68mm L

68MM

6шт.

19

87310820

CARRIER,Planetary

2шт.

20

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

21

87421144

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

22

11061376

SNAP RING,M68, Int

2шт.
