Запчасти Case IH PUMA 125 (1.40.0/07[02]) - (CL.3) FRONT AXLE WITH HYDR. DIFFER. LOCK AND STEERING SENSOR - DIFFERENTIAL LOCK (04) - FRONT AXLE & STEERING

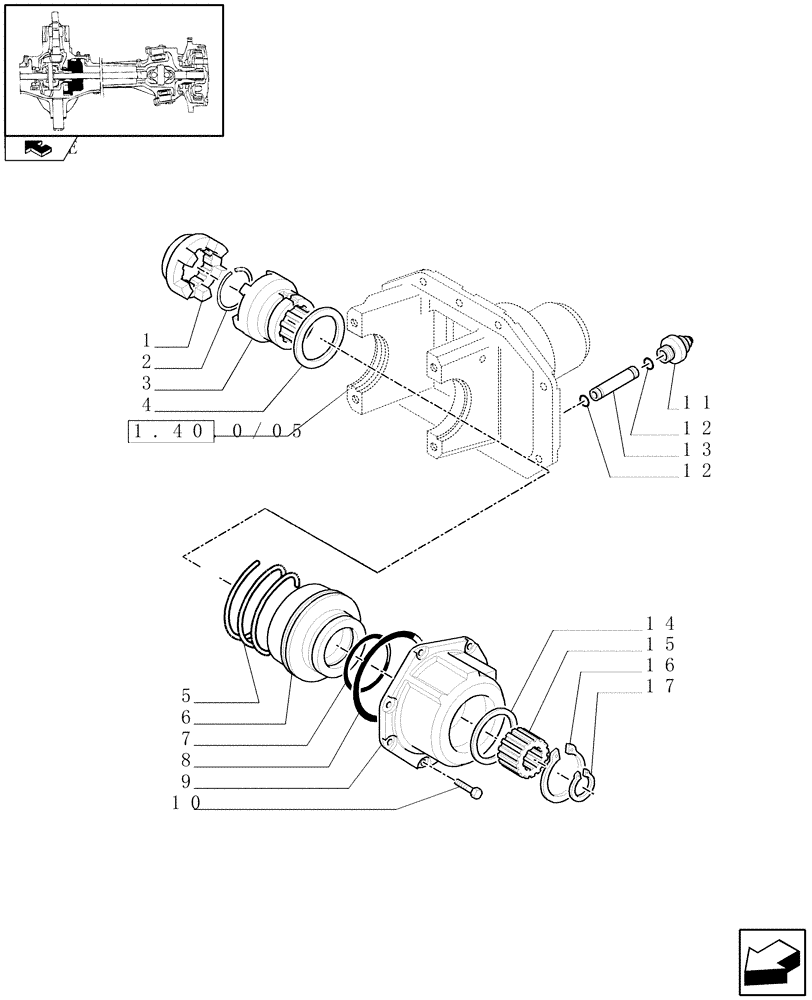

Схема запчастей Case IH PUMA 125 - (1.40.0/07[02]) - (CL.3) FRONT AXLE WITH HYDR. DIFFER. LOCK AND STEERING SENSOR - DIFFERENTIAL LOCK (04) - FRONT AXLE & STEERING
1
4
2
16
6
7
3
15
8
12
1.40.0/05
11
14
13
10
17
12
9
5
home

Артикул

Название

Примечание

Количество

1

5153349

SLEEVE

1шт.

2

5153351

SNAP RING,55.5mm ID

D=3 x 54

1шт.

3

5153350

SLEEVE,22T

1шт.

4

5153392

THRUST WASHER,72.5mm ID x 90mm OD x 2.8mm Thk

1шт.

5

5154040

SPRING

1шт.

6

5155169

PISTON

1шт.

7

14465781

O-RING,3.609" ID x 3.887" OD x 0.139"

1шт.

8

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

1шт.

9

5155167

HOUSING

1шт.

10

14233824

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8

6шт.

11

87728617

HYD CONNECTOR

M22 x 1.5 , 3/4"-16

1шт.

12

81844608

O-RING,11.10mm ID x 1.78mm

2шт.

13

5182961

TUBE

1шт.

14

5153391

THRUST WASHER,67mm ID x 83mm OD x 3mm Thk

1шт.

15

5153390

HUB

1шт.

16

300636

SNAP RING,M70, External

D=70

1шт.

17

11068376

SNAP RING,M35, Ext x 1.5 Thk

D=35

2шт.

Выбрано товаров: 17
