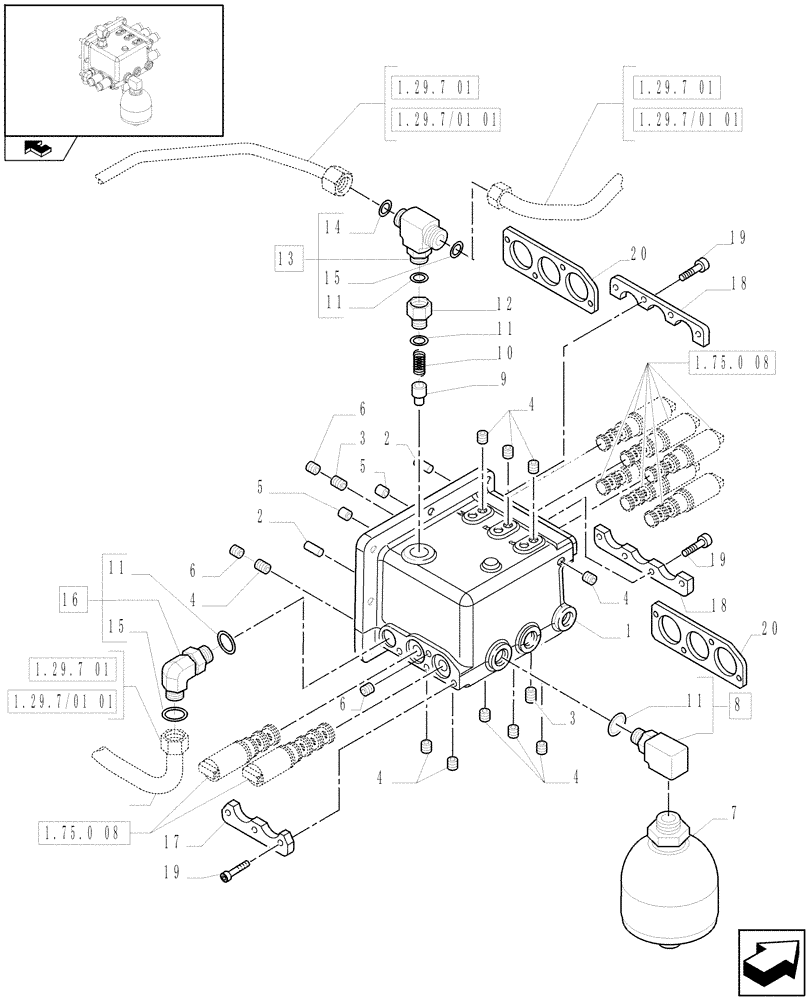

Запчасти Case IH PUMA 125 (1.32.2[02]) - TRANSMISSION 18X6 OR 19X6 - REDUCTION UNIT VALVE BLOCK - SUPPORT AND ACCUMULATOR (03) - TRANSMISSION

1

87381541

VALVE BODY

ASSY, Incl. 2-6

1шт.

2

10839710

DOWEL,M10 x 15.00mm

2шт.

3

87323514

SLEEVE VALVE

2шт.

4

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

10шт.

5

5120207

BUSHING,10.5mm ID x 12.7mm OD x 19mm L

10.5 x 12.7 x 19

2шт.

6

10269404

PLUG,M12 x 1.5

2шт.

7

87314179

ACCUMULATOR,0.75L

1шт.

8

87520335

HYD CONNECTOR,M22 x 1.5 x M22 x .5

1шт.

9

5169565

VALVE,By-Pass

1шт.

10

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

DO=12.5 DW=1.7 32.5MM

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

12

5195483

HYD CONNECTOR,M22 x 1.5 ORFS - M22 x 1.5 ORB

1шт.

13

87325405

HYD CONNECTOR,1"-14 ORFS x 13/16-16 ORFS x M22 x 1.5 ORB

M22 x 1.5 13/16-16

1шт.

14

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

12.42 x 1.78

1шт.

15

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

16

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

1шт.

17

87386213

FIXING PLATE

1шт.

18

87386216

FIXING PLATE

, Serial Range: -C6743

2шт.

19

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

11шт.

20

84277154

MOUNTING PARTS

, Start Serial: D6743

2шт.
