Запчасти Case IH PUMA 125 (1.21.3[01]) - SUSPENDED FRONT AXLE - BEARINGS AND DRIVE SHAFT CARRIER ARM (VAR.330429-330430-330414-330427) (03) - TRANSMISSION

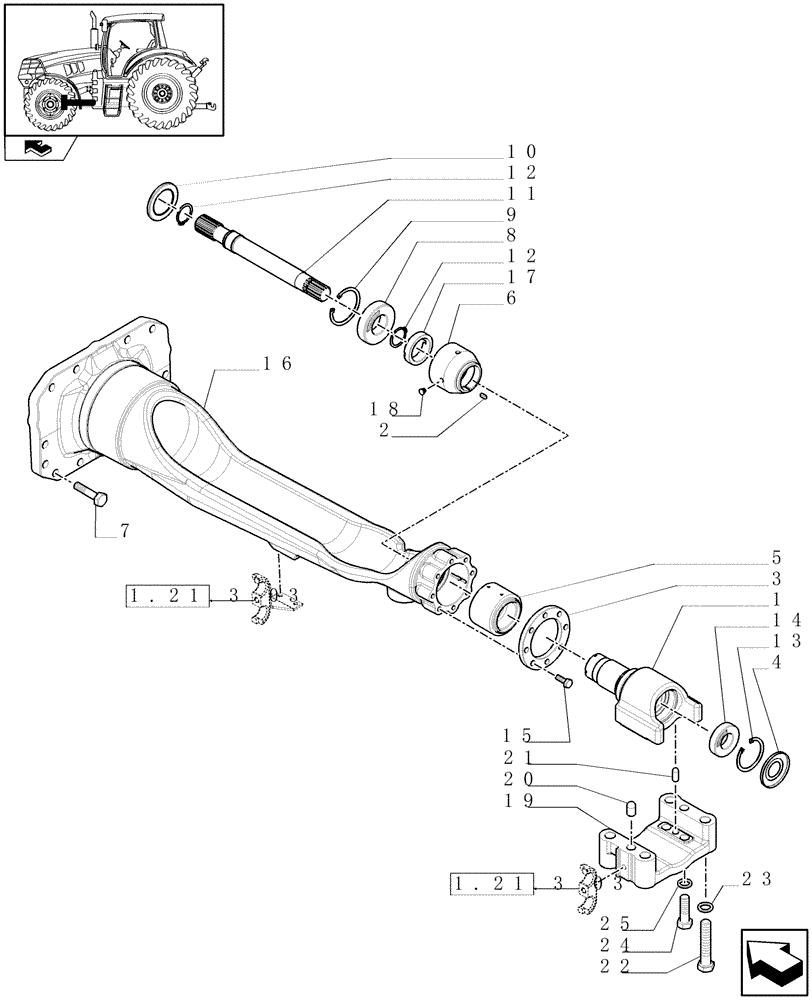

Схема запчастей Case IH PUMA 125 - (1.21.3[01]) - SUSPENDED FRONT AXLE - BEARINGS AND DRIVE SHAFT CARRIER ARM (VAR.330429-330430-330414-330427) (03) - TRANSMISSION
1.21.3 03
home
1.21.3 03
9
12
7
15
24
22
25
10
13
8
2
4
14
11
3
20
21
19
23
5
16
17
12
6
1
18

Артикул

Название

Примечание

Количество

1

87618799

HOLDER

Incl. 2

1шт.

2

14723110

KEY,6mm x 6mm x 16mm

1шт.

3

82037881

PLATE

1шт.

4

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.

5

82037905

BEARING,60mm ID x 95mm OD x 66mm W

1шт.

6

87601957

BEARING HOUSING,67.00mm x 96.00mm x 74.00mm

1шт.

7

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

12шт.

8

28996550

BALL BEARING,40mm ID x 80mm OD x 18mm W

35 x 80 x 21

1шт.

9

11061976

SNAP RING,M80, Int

1шт.

10

5198541

PLATE,62.2mm ID x 85mm OD x 1mm Thk

1шт.

11

87601964

SHAFT

D=40

1шт.

12

11068876

SNAP RING,M40, Ext

2шт.

13

11061576

SNAP RING,M72, Int

1шт.

14

28996540

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

15

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

16

87383924

ARM

1шт.

17

82037880

NUT,M50 x 2.00mm

M55 x 2

1шт.

18

83908579

PLUG,M7.62

4шт.

19

87311709

BLOCK

Incl. 20, 21

1шт.

20

82020394

PIN,M18 x 30.00mm

2шт.

21

10837810

DOWEL,M12 x 30.00mm

2шт.

22

11125874

BOLT,Hex, M20 x 105, 12.9

4шт.

23

82014831

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

24

14271974

BOLT,Hex, M18 x 1.5 x 60mm, Cl 12.9

4шт.

25

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

Выбрано товаров: 25
