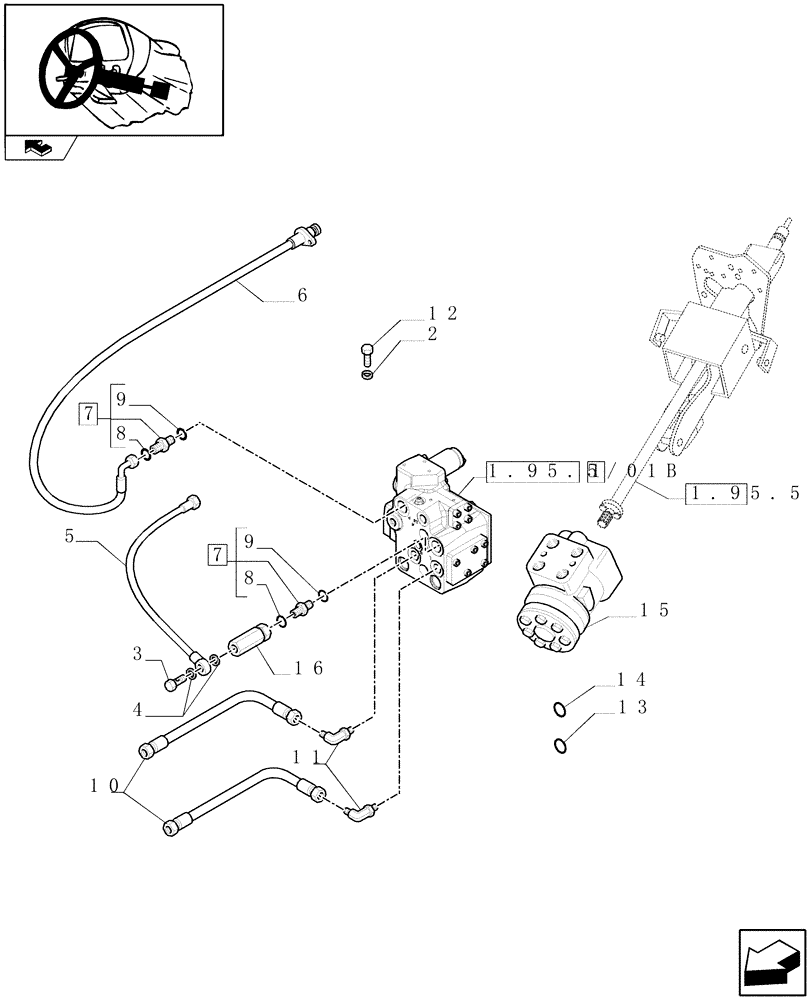

Запчасти Case IH PUMA 125 (1.95.5/01[03]) - FAST STEERING - POWER STEERING, VALVE AND PIPES - C6477 (VAR.330631-336631) (10) - OPERATORS PLATFORM/CAB

1

87546345

HYDRAULIC VALVE

ASSY

1шт.

2

10569471

LOCK WASHER,Lock, 3/8"

2шт.

3

5112588

BANJO BOLT,M22 x 1.5 x 40mm

M18x1.5x34

1шт.

4

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

5

87379576

FLEXIBLE HOSE,600.00mm

Feed

1шт.

6

87661596

HOSE,625.00mm

RETURN 1"-14, 13/16-16

1шт.

7

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

1"-14, M18x1.5

2шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

15.7 x 20.9 x 1.5

2шт.

10

87319929

FLEXIBLE HOSE,500.00mm

2шт.

11

87319921

HYD CONNECTOR

2шт.

12

47131084

SCREW,Hex Socket, M10 x 1 x 90.00mm

M10 x 1 x 90

2шт.

13

47136168

BACK-UP RING

1шт.

14

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

4шт.

15

87317892

HYDRAULIC STEERING

4WD, VAR.330631

1шт.

Faststerr 4WD, for Cl.3 VAR.330631

1шт.

PUMA115, PUMA125, PUMA140

1шт.

15

84198300

HYDRAULIC STEERING

1шт.

Faststeer 4WD for Cl.4, VAR.336631

1шт.

16

87350633

FILTER

1шт.
