Запчасти Case IH PUMA 125 (1.94.2[03A]) - HEATING - HEATER - AIR CONDITIONER AND RELATED PARTS - D6481 (10) - OPERATORS PLATFORM/CAB

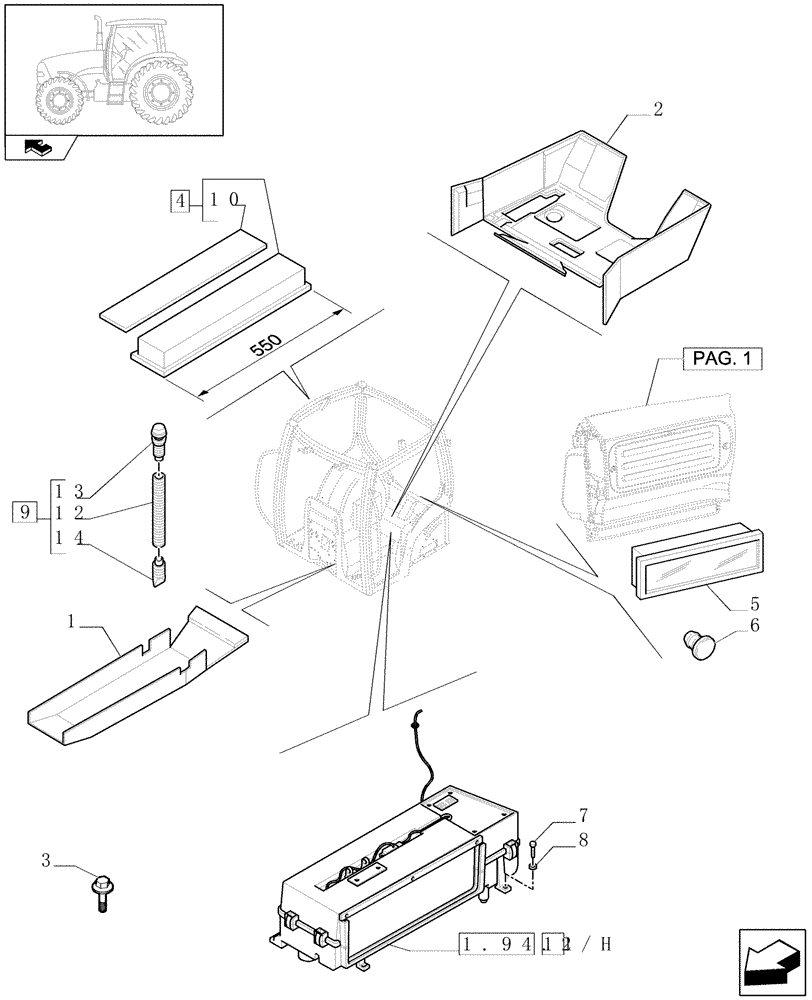

Схема запчастей Case IH PUMA 125 - (1.94.2[03A]) - HEATING - HEATER - AIR CONDITIONER AND RELATED PARTS - D6481 (10) - OPERATORS PLATFORM/CAB
7
6
home
1.94.2/h
3
5
8
4
9
12
11
14
13
10
2
1

Артикул

Название

Примечание

Количество

1

87661587

INSULATOR

RH

1шт.

1

87661589

INSULATOR

LH

1шт.

2

87661585

INSULATOR

1шт.

3

87581911

FLANGE BOLT,Hex, M6 x 25mm

2шт.

4

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

2шт.

5

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

6

82027031

PLUG,M10

1шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

9

84232466

TUBE

A/C HOSE ASSY

2шт.

10

82024373

FOAM

2шт.

11

84210146

AIR CONDITIONER

1шт.

12

84232468

HOSE,25.40 mm ID x 800.00 mm

A/C HOSE

2шт.

13

84231998

DRAIN

2шт.

14

84232000

CHECK VALVE

2шт.

Выбрано товаров: 15
