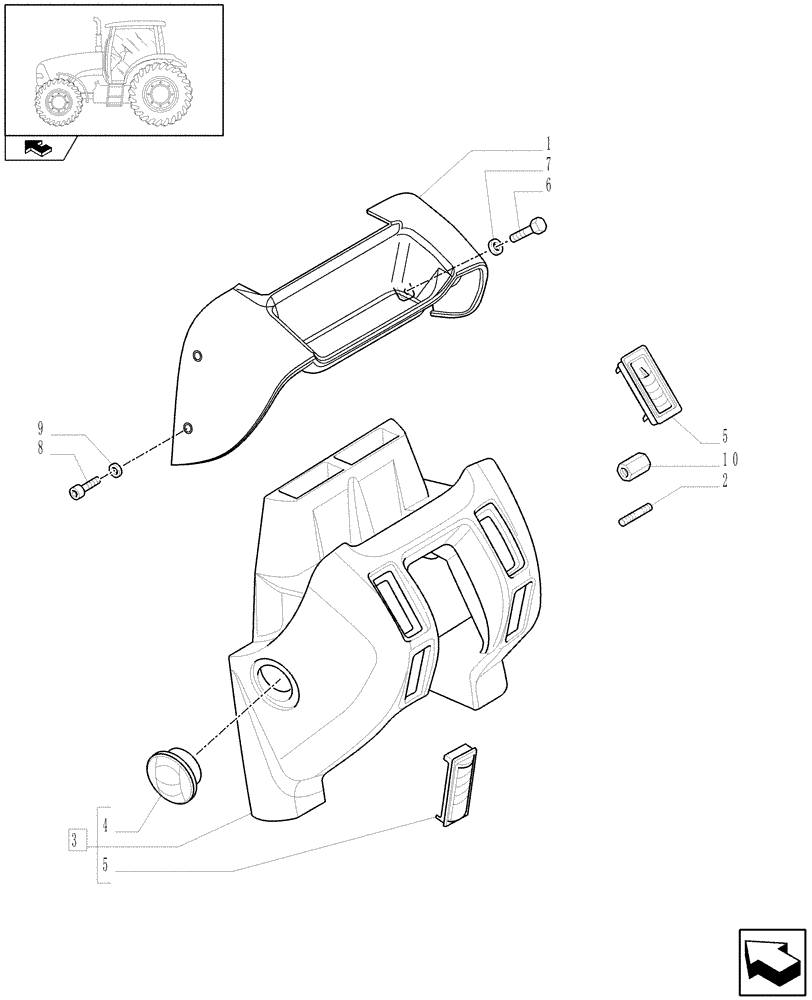

Запчасти Case IH PUMA 125 (1.93.5) - PANEL INSTRUMENTS (10) - OPERATORS PLATFORM/CAB

1

82037562

PANEL

1шт.

2

11500321

BOLT,M6 x 18, 8.8, ZND

4шт.

3

47056116

DASHBOARD

Incl. 4, 5, Serial Range: -C5924

1шт.

3

87735383

CONSOLE

Incl. 4, 5, Start Serial: D5924

1шт.

4

82027909

DIFFUSER

2шт.

5

87568777

VENT

Wheat

4шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

4шт.

9

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

4шт.

10

47056231

SPACER,19mm x 26.5mm w/M6 Threads

2шт.

10

47056232

SPACER,19mm x 42mm w/M6 Threads

2шт.
