Запчасти Case IH PUMA 125 (1.93.3/ B[06]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, W/BELTS AND W/SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB

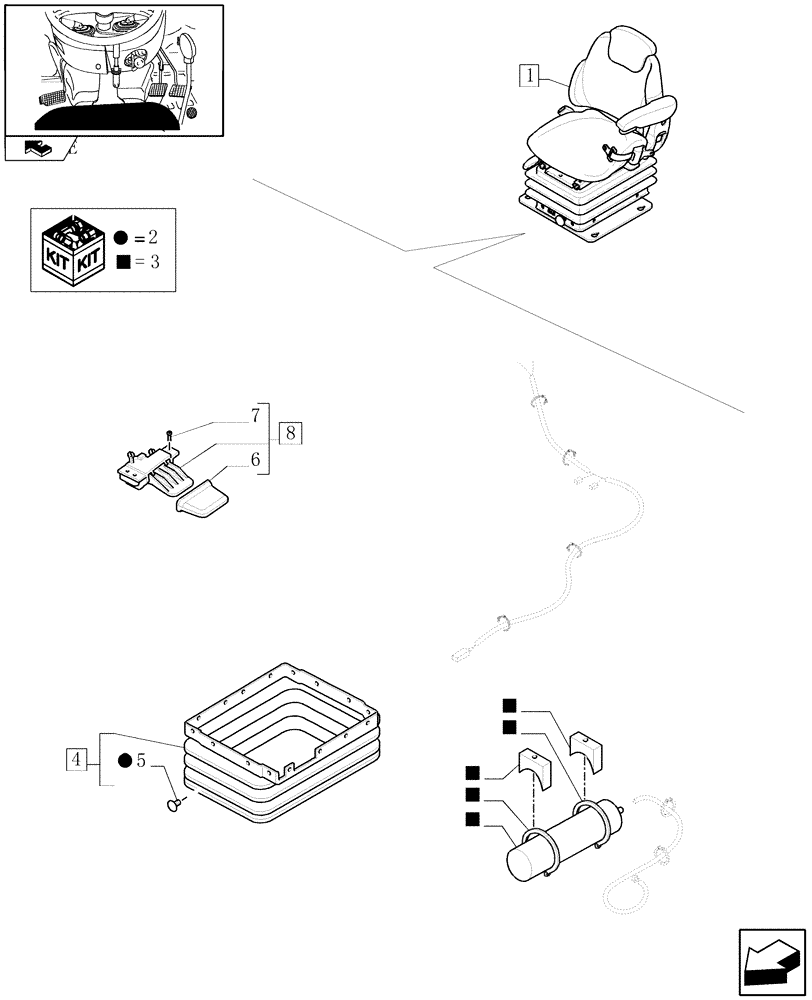

Схема запчастей Case IH PUMA 125 - (1.93.3/ B[06]) - "GRAMMER" DELUXE AIR SUSPENSION SEAT WITH HEATED CUSHIONS, W/BELTS AND W/SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB
3
6
2
2
7
4
1
3
home
3
5
3
3
3
8
3
2

Артикул

Название

Примечание

Количество

1

87590511

SEAT

ASSY

1шт.

2

82848105

KIT

Set of Wear Parts

1шт.

3

84171416

SERVICE KIT

1шт.

4

85827920

BELLOWS

1шт.

5

82035026

PLUG

1шт.

6

345106A1

HANDLE

1шт.

7

85819815

SCREW,M5 x 16mm

M5 x 16

3шт.

8

345107A1

LEVER

1шт.

Выбрано товаров: 8
