(1.90.2/01) - ELECTRONIC MID MOUNTED VALVES - COVER (VAR.330560-330561-330562-332821-334821)

Запчасти Case IH PUMA 125 (1.90.2/01) - ELECTRONIC MID MOUNTED VALVES - COVER (VAR.330560-330561-330562-332821-334821) (10) - OPERATORS PLATFORM/CAB

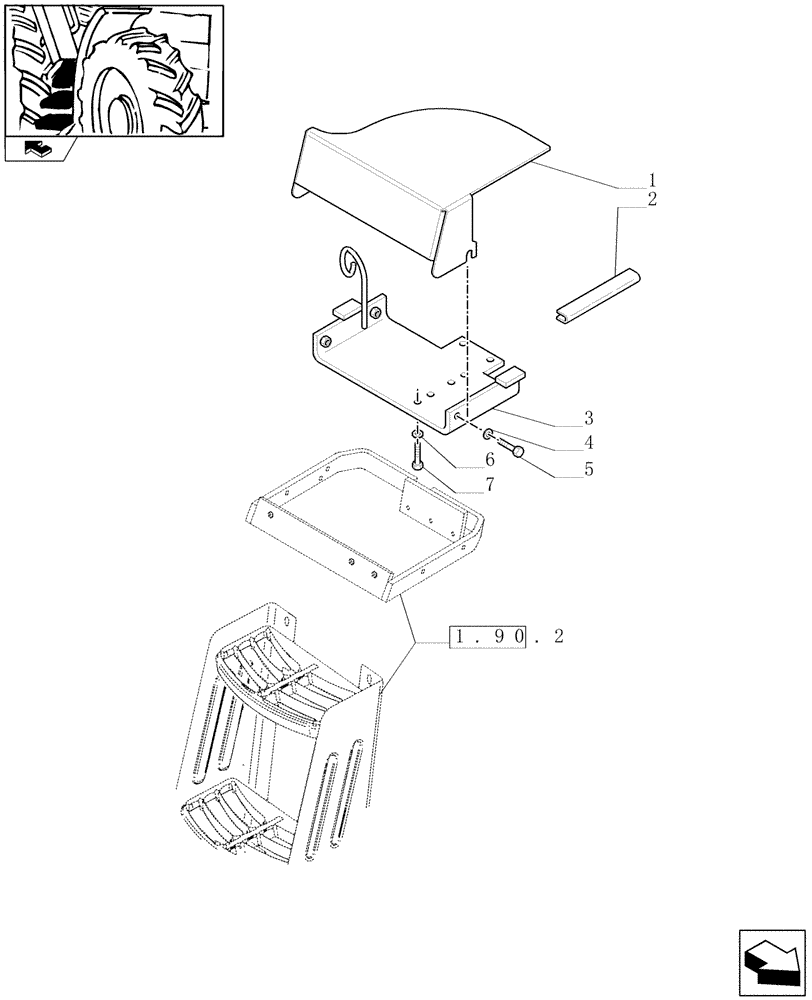

Схема запчастей Case IH PUMA 125 - (1.90.2/01) - ELECTRONIC MID MOUNTED VALVES - COVER (VAR.330560-330561-330562-332821-334821) (10) - OPERATORS PLATFORM/CAB
home
5
4
6
2
1
7
1.90.2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87667183

COVER ASSY

1шт.

2

83964601

MOLDING,164mm L

2шт.

3

87598923

SUPPORT

1шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

5

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

3шт.

6

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.
