(1.40. 9/14[02]) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, ST. SENSOR AND BRAKES - BRAKES (VAR.330427)

Запчасти Case IH PUMA 125 (1.40. 9/14[02]) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, ST. SENSOR AND BRAKES - BRAKES (VAR.330427) (04) - FRONT AXLE & STEERING

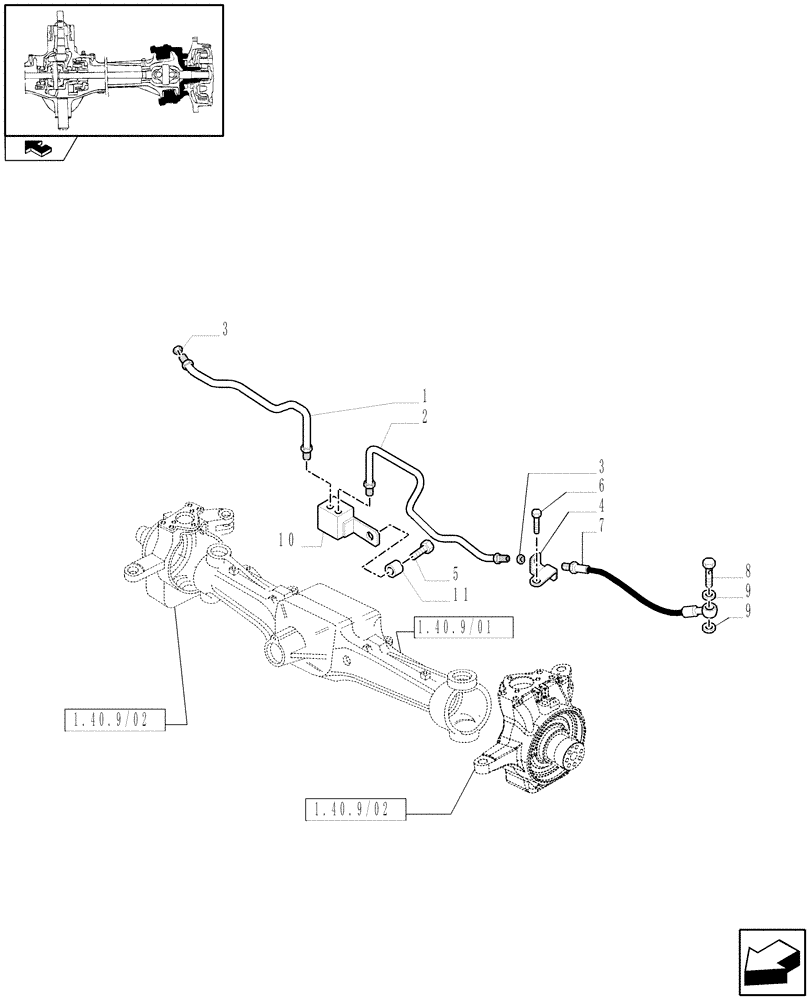

Схема запчастей Case IH PUMA 125 - (1.40. 9/14[02]) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, ST. SENSOR AND BRAKES - BRAKES (VAR.330427) (04) - FRONT AXLE & STEERING
7
10
6
1
9
1.40.9/01
1.40.9/02
home
5
11
3
1.40.9/02
9
2
4
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87571774

BRAKE LINE

RH

1шт.

2

87571766

BRAKE LINE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

87571108

BRACKET

LH

1шт.

5

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

295MM

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12x1.25x22

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

12MM

4шт.

10

87351041

BRACKET

1шт.

11

47127963

SPACER

1шт.
