Запчасти Case IH PUMA 125 (1.40. 9/06[01A]) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, ST. SENSOR AND BRAKES - BEVEL GEAR PAIR - D5954 (VAR.330427) (04) - FRONT AXLE & STEERING

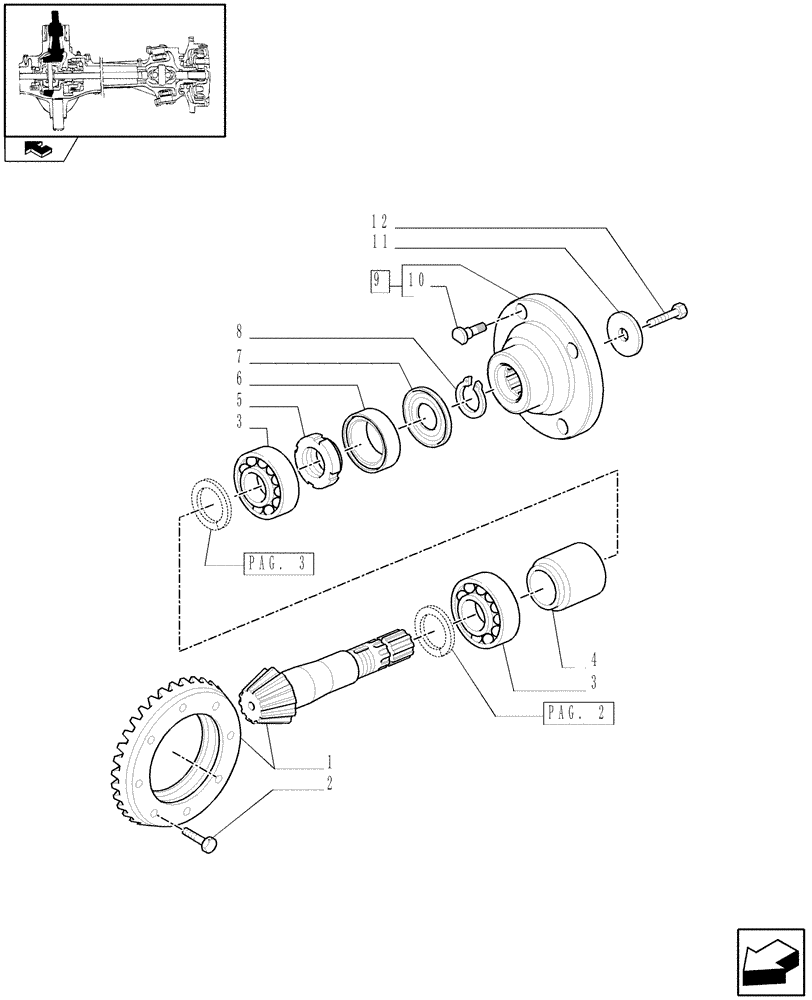

Схема запчастей Case IH PUMA 125 - (1.40. 9/06[01A]) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, ST. SENSOR AND BRAKES - BEVEL GEAR PAIR - D5954 (VAR.330427) (04) - FRONT AXLE & STEERING
12
3
5
10
6
7
9
8
4
3
pag. 3
home
pag. 2
1
2
11

Артикул

Название

Примечание

Количество

1

87660362

BEVEL GEAR

Ratio 10/34

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

41.275 x 82.550 x 26.543

2шт.

4

5197256

SPACER

1шт.

5

5119147

RING NUT,M40 x 1.5

1шт.

6

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

7

87528144

SEAL PROTECTION

1шт.

8

11068476

SNAP RING,M36, Ext

1шт.

9

87350786

FLANGE

1шт.

10

87550808

PIN,12.5mm OD x 37mm L

4шт.

11

87350787

WASHER

1шт.

12

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 12
