Запчасти Case IH PUMA 125 (1.40. 8/02[01A]) - (CL.3) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR-STEERING AXLES - HUBS - D6449 (VAR.330414) (04) - FRONT AXLE & STEERING

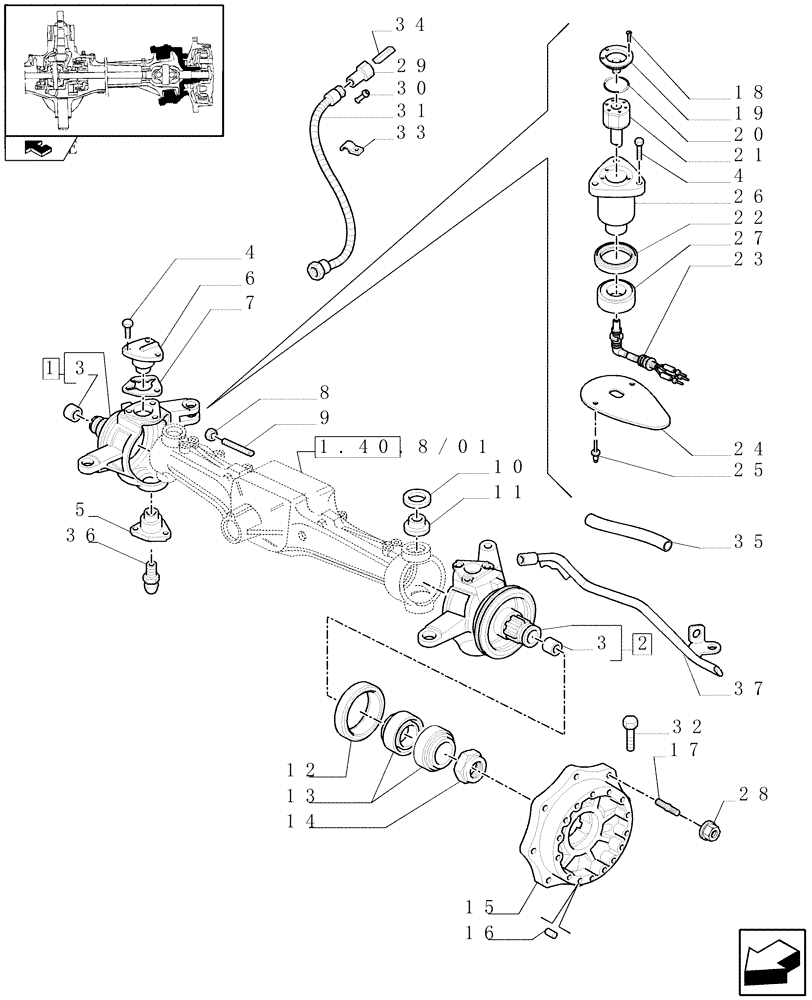

Схема запчастей Case IH PUMA 125 - (1.40. 8/02[01A]) - (CL.3) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR-STEERING AXLES - HUBS - D6449 (VAR.330414) (04) - FRONT AXLE & STEERING
29
14
3
33
12
36
34
25
17
1.40.8/01
4
18
26
35
home
6
22
30
5
15
8
13
31
28
32
21
23
19
10
7
11
20
4
37
24
27
2
9
16
3
1

Артикул

Название

Примечание

Количество

1

84196952

KNUCKLE,RH

ASSY. RH

1шт.

2

84196849

KNUCKLE,LH

ASSY. LH

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

87333763

BALL STUD

BALL PIN

2шт.

6

87361688

BALL STUD

BALL PIN

1шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

0.20MM

1шт.

7

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

0.25MM

1шт.

7

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

0.30MM

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

165X190X15.5/16.5

2шт.

13

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

14

5142020

NUT,Hex, M75 x 2

M75 x 20

2шт.

15

87529959

HUB

Incl. 16, 17

2шт.

16

4985063

DOWEL,12mm OD x 20mm L

4шт.

17

87618916

STUD

16шт.

18

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

19

87574551

PIN

1шт.

20

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

21

87627614

SENSOR

1шт.

22

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

23

87616286

ELEC CONNECTOR

HARNESS

1шт.

24

87315098

SHIELD

1шт.

25

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

26

87382577

BALL STUD

BALL PIN

1шт.

27

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

28

87678013

NUT,M16 x 1.5

16шт.

29

82918426

ELEC CONNECTOR,Female

1шт.

30

82918419

PLUG

1шт.

31

87658190

FLEXIBLE SHEATH

1шт.

32

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

33

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

34

82918451

SPACER

1шт.

35

87619627

HOSE PROTECTION

1шт.

36

13407211

LUBE NIPPLE,M10 x 1

3шт.

37

87717287

HYD TUBE,12mm OD

1шт.

Выбрано товаров: 41
