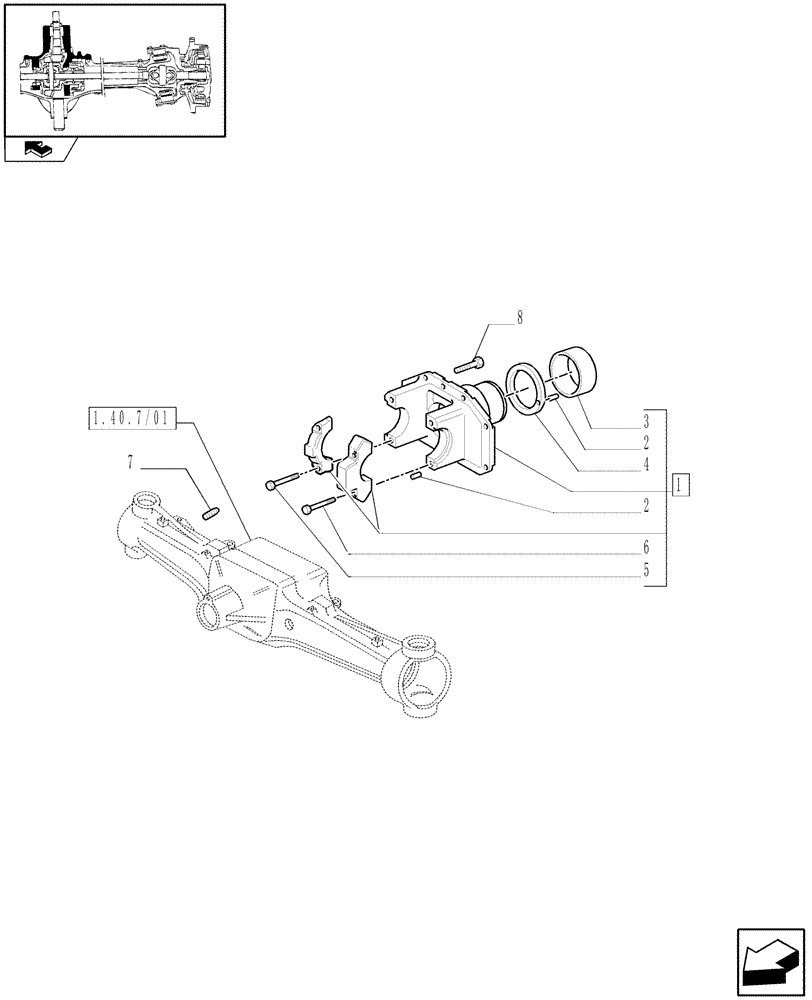

Запчасти Case IH PUMA 125 (1.40. 7/05[01A]) - (CL.3) FRONT AXLE WITH DOG CLUTCH AND STEERING SENSOR - SUPPORT - D5954 (VAR.330409) (04) - FRONT AXLE & STEERING

1

87523108

SUPPORT

ASSY

1шт.

2

4966244

PIN,5mm OD x 15mm L

5 x 15

1шт.

3

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

90 x 99 x 72

1шт.

4

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90 x 136 x 5

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

6

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

2шт.

7

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

M6 x 25

1шт.

8

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.
