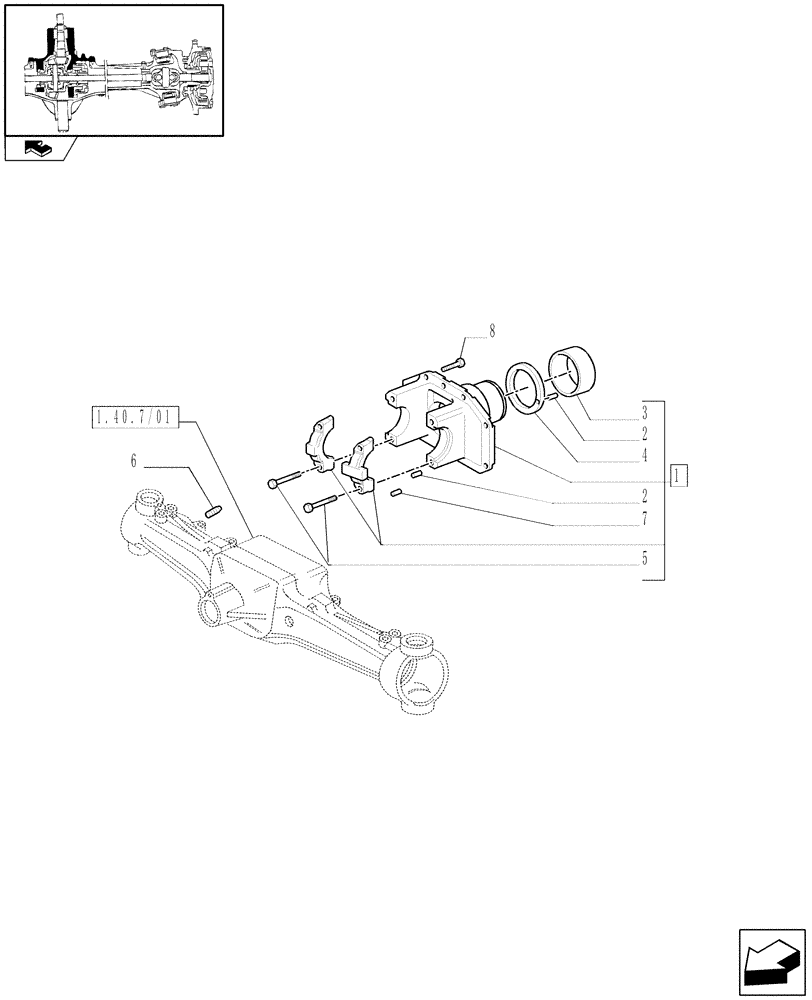

Запчасти Case IH PUMA 125 (1.40. 7/05[01]) - (CL.3) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - SUPPORT - C5954 (VAR.330409) (04) - FRONT AXLE & STEERING

1

87523106

SUPPORT

ASSY

1шт.

2

4966244

PIN,5mm OD x 15mm L

5 x 15

5шт.

3

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

90 x 99 x 72

1шт.

4

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90 x 136 x 5

1шт.

5

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

2шт.

7

10333210

DOWEL,M4 x 10.00mm

1шт.

8

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.
