Запчасти Case IH PUMA 125 (1.40. 6/14[03A]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. L/ST. SENSOR W/BRAKES - PIPES - D6366 - C6089 (VAR.330425) (04) - FRONT AXLE & STEERING

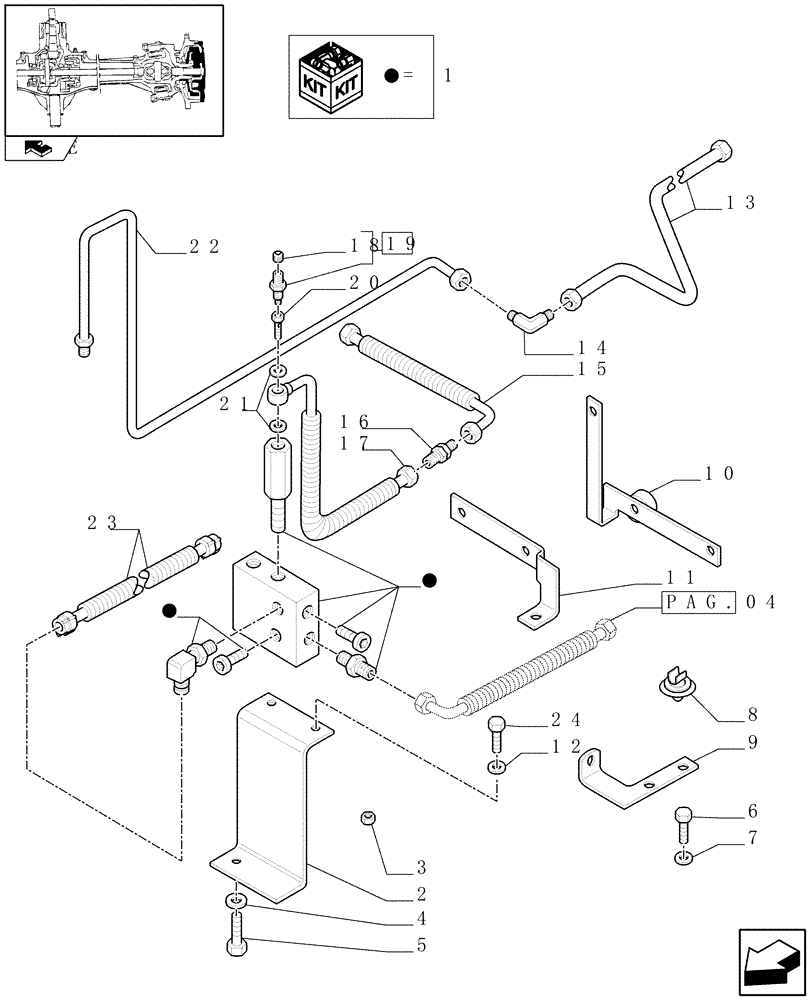

Схема запчастей Case IH PUMA 125 - (1.40. 6/14[03A]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. L/ST. SENSOR W/BRAKES - PIPES - D6366 - C6089 (VAR.330425) (04) - FRONT AXLE & STEERING
10
1
24
16
15
13
14
23
home
pag.04
4
17
2
1
22
5
7
21
1
9
8
19
6
11
18
12
3
20

Артикул

Название

Примечание

Количество

1

87366557

BRAKE VALVE

ASSY

1шт.

2

87534919

BRACKET

1шт.

3

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

M6

2шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10.5x21

1шт.

5

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

87609144

CLIP,6mm Hose

2шт.

9

87713126

BRACKET

1шт.

10

87534921

BRACKET

1шт.

11

87326927

BRACKET

1шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

13

87607314

HYD TUBE,4.58 mm ID x 689, 45 mm L

1шт.

14

87366955

HYD CONNECTOR

7/16

1шт.

15

87609294

FLEXIBLE HOSE,590.00mm

1шт.

16

82016624

ADAPTER

1шт.

17

87547658

HOSE

Cyl to Front Brakes

1шт.

18

81871475

CAP,4.7mm ID x 13mm OD x 10mm L

1шт.

19

81874592

BLEEDER,M12 x 1 x 15.50mm

1шт.

20

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

21

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

2шт.

22

87607797

TUBE,6 mm OD x 696, 24 mm L

1шт.

23

87534910

HOSE

Return

1шт.

24

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

Выбрано товаров: 24
