Запчасти Case IH PUMA 125 (1.40. 6/06[01]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. L/ST. SENSOR W/BRAKES - BEVEL GEAR PAIR (VAR.330425) (04) - FRONT AXLE & STEERING

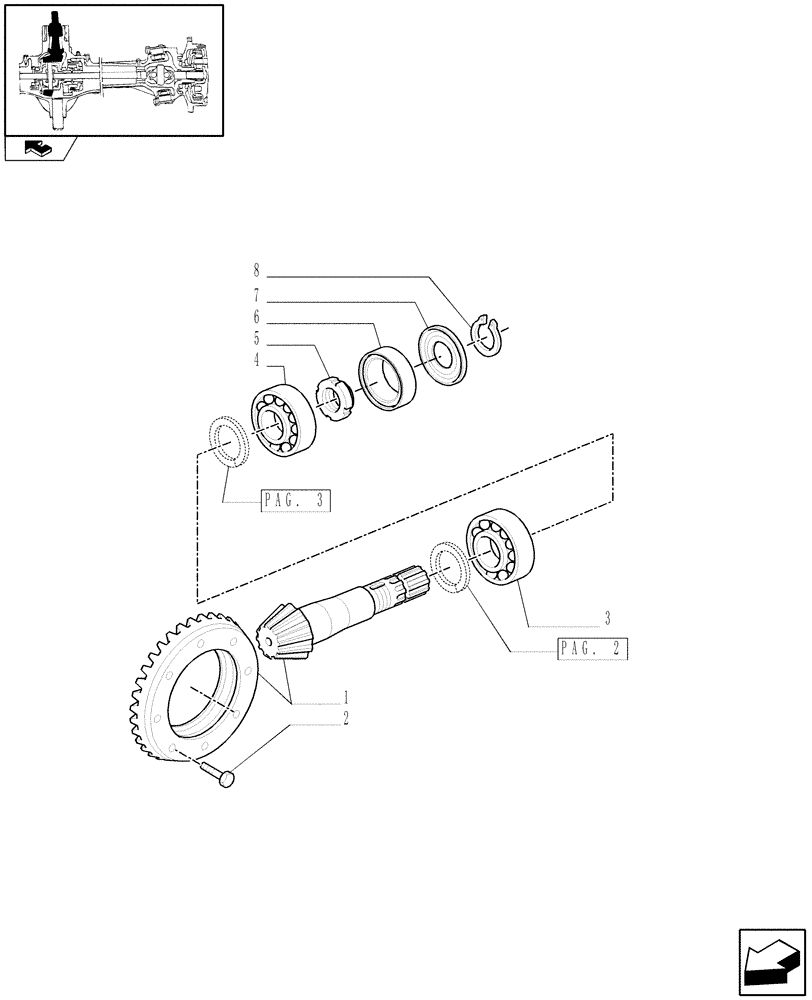

Схема запчастей Case IH PUMA 125 - (1.40. 6/06[01]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. L/ST. SENSOR W/BRAKES - BEVEL GEAR PAIR (VAR.330425) (04) - FRONT AXLE & STEERING
2
8
6
3
7
1
pag. 3
home
pag. 2
4
5

Артикул

Название

Примечание

Количество

1

87519336

BEVEL GEAR

Ratio 10/34

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

41.275x82.550x26.543

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

35x72x28

1шт.

5

5143242

RING NUT,M35 x 1.5

M35x19.5

1шт.

6

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

32.5x75x14.5

1шт.

7

87527839

SEAL PROTECTION

1шт.

8

11067876

SNAP RING,M30, Ext

1шт.

Выбрано товаров: 8
