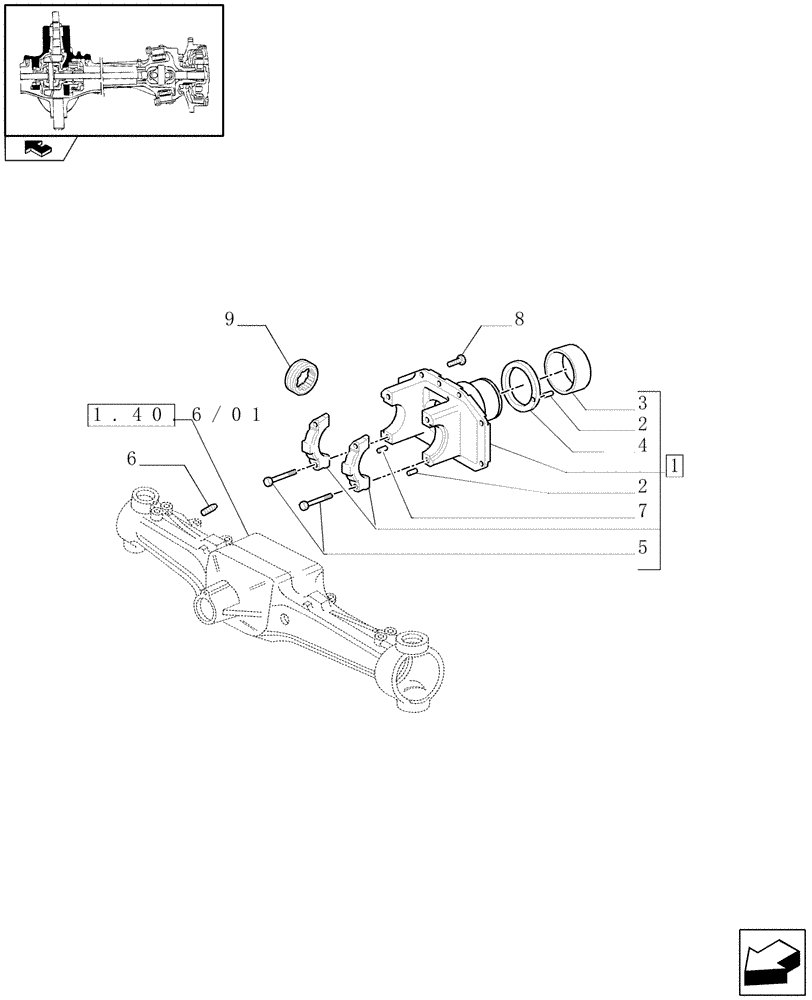

Запчасти Case IH PUMA 125 (1.40. 6/05) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. L/ST. SENSOR W/BRAKES - SUPPORT (VAR.330425) (04) - FRONT AXLE & STEERING

1

87523104

SUPPORT

ASSY

1шт.

2

4966244

PIN,5mm OD x 15mm L

5x15

1шт.

3

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

90x99x72

1шт.

4

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90x136x5

1шт.

5

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

6

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

2шт.

7

10333210

DOWEL,M4 x 10.00mm

D=4x10

2шт.

8

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

9

4996750

RING NUT,M100 x 2

M100x13

2шт.
