Запчасти Case IH PUMA 125 (1.40. 3/07[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK SENSOR AND BRAKE - DIFFERENTIAL (VAR.330426) (04) - FRONT AXLE & STEERING

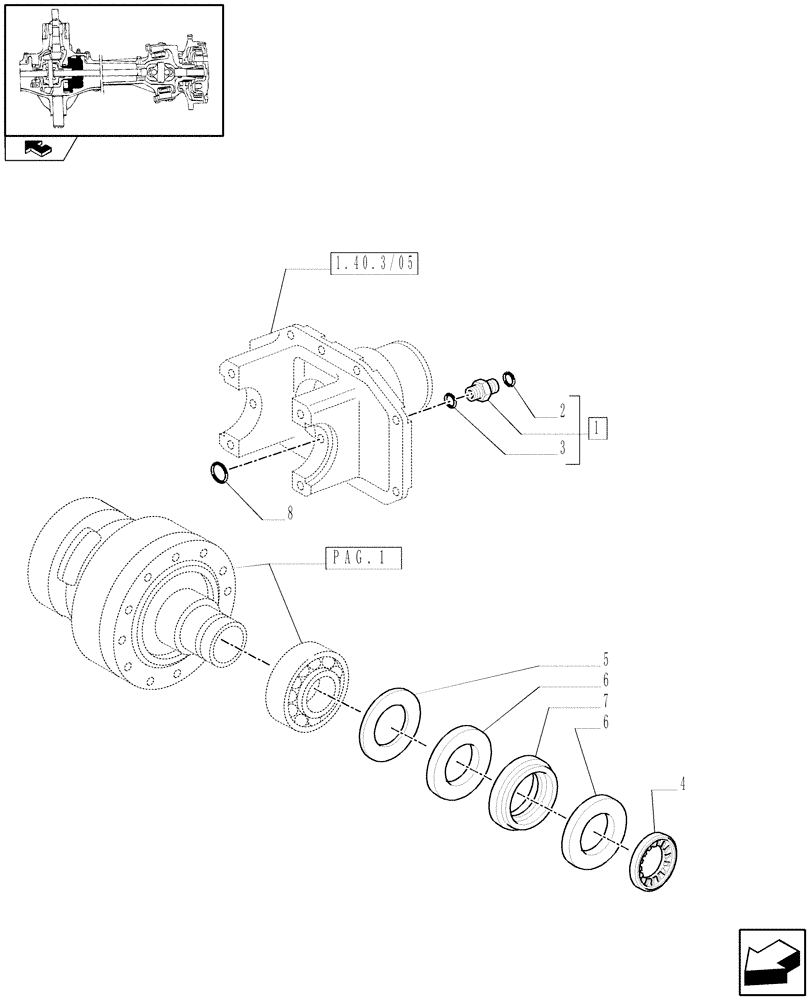

Схема запчастей Case IH PUMA 125 - (1.40. 3/07[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK SENSOR AND BRAKE - DIFFERENTIAL (VAR.330426) (04) - FRONT AXLE & STEERING
8
7
3
1.40.3/05
home
4
1
6
5
pag.1
6
2

Артикул

Название

Примечание

Количество

1

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

4

47129254

RING NUT

1шт.

5

47129259

SPACER,59.00mm ID x 94.50mm OD x 6.00mm

1шт.

6

47132472

SEAL,55.00mm x 72.00mm x 7/7.50mm

2шт.

7

47129260

HOUSING

1шт.

8

5192501

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

1шт.

Выбрано товаров: 8
