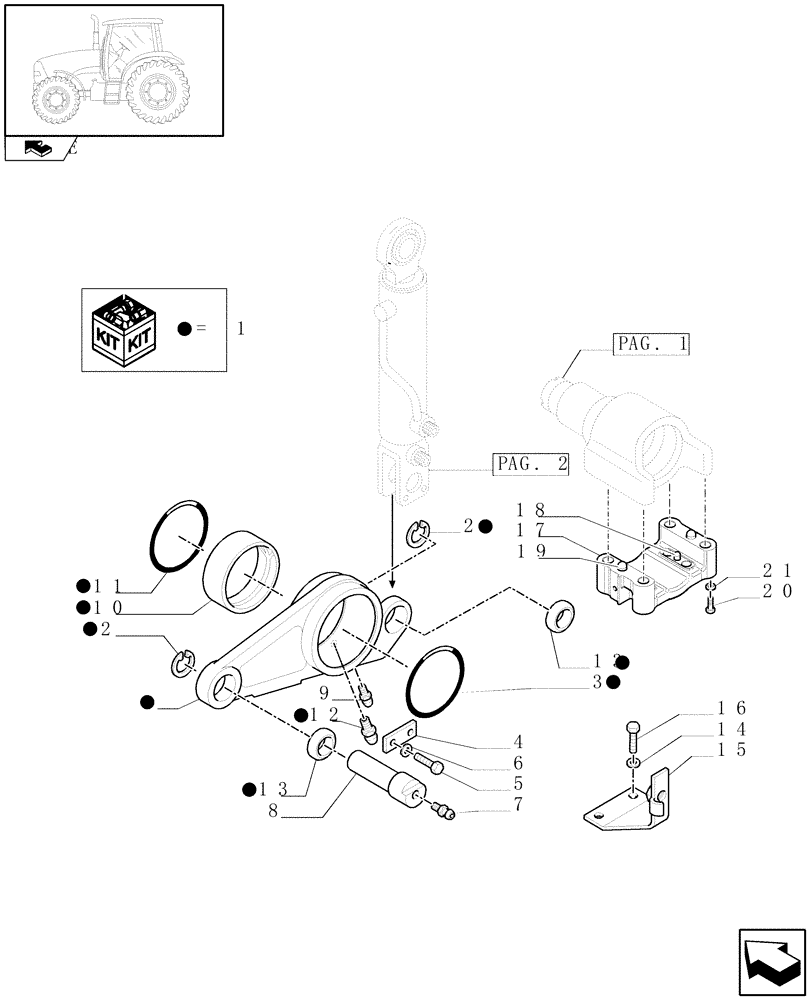

Запчасти Case IH PUMA 125 (1.21.3[03]) - SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - CYLINDER AND REL. PARTS (VAR.330429-330430-330414-330427) (04) - FRONT AXLE & STEERING

1

87383938

ROD ASSY.

1шт.

2

11061076

SNAP RING,M62, Int

2шт.

3

14483280

O-RING,8.225" ID x 0.210"

1шт.

4

82016870

BRACKET

1шт.

5

83962654

SCREW,Hex, M10 x 1.5 x 20mm, Gr 8.8

2шт.

6

85700672

LOCK WASHER,M10

2шт.

7

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

8

87305641

PIN,44mm OD x 136mm L

1шт.

9

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

10

82020450

BUSHING,200mm ID x 205mm OD x 60mm L

1шт.

11

14483180

O-RING,0.21" Thk x 7.975" ID, -369, Cl 5, 75 Duro

1шт.

12

13407211

LUBE NIPPLE,M10 x 1

1шт.

13

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

2шт.

14

83963081

LOCK WASHER,Serr, 8.20mm ID x 14mm OD

2шт.

15

82033192

BRACKET

1шт.

16

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

17

87311709

BLOCK

Incl. 18-19

1шт.

18

10837810

DOWEL,M12 x 30.00mm

D=12

2шт.

19

82020394

PIN,M18 x 30.00mm

2шт.

20

14271974

BOLT,Hex, M18 x 1.5 x 60mm, Cl 12.9

M18 x 1.5 x 60

4шт.

20

11125874

BOLT,Hex, M20 x 105, 12.9

4шт.

21

82014658

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.

21

82014831

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

4шт.
