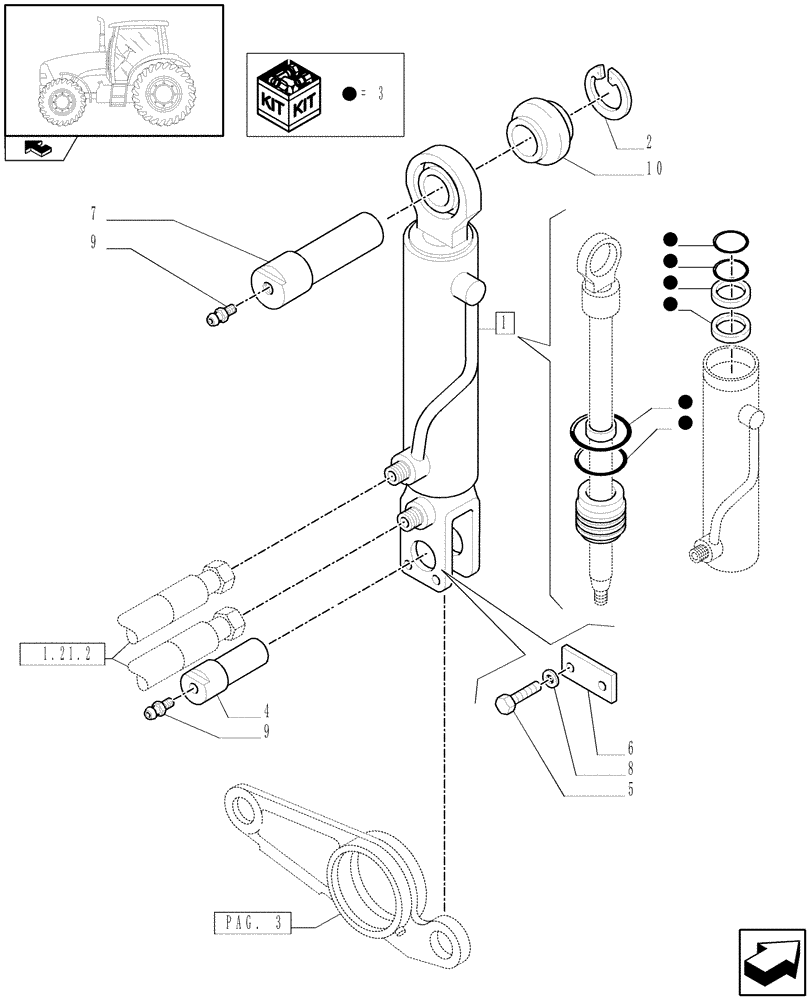

Запчасти Case IH PUMA 125 (1.21.3[02]) - SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - CYLINDER AND REL. PARTS (VAR.330429-330430-330414-330427) (04) - FRONT AXLE & STEERING

1

87316820

CYLINDER

Incl. 2, Serial Range: -C5775

1шт.

1

87664861

CYLINDER,Double Acting, 55mm Rod, 152mm Stroke

Incl. 2, 3, 10, Start Serial: D5775

1шт.

2

11061076

SNAP RING,M62, Int

1шт.

3

87316817

SEAL KIT

1шт.

4

87311698

PIN,34mm OD x 68mm L

1шт.

5

83962654

SCREW,Hex, M10 x 1.5 x 20mm, Gr 8.8

2шт.

6

82016870

BRACKET

1шт.

7

87340146

PIN,34mm OD x 89.7mm L

1шт.

8

85700672

LOCK WASHER,M10

2шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

82016695

SPHERICAL BEARING,60mm ID x 62mm OD x 35mm W

, Start Serial: D5775

1шт.
