Запчасти Case IH PUMA 125 (1.21.1[02]) - 4WD SUPPORT FOR FRONT AXLE (04) - FRONT AXLE & STEERING

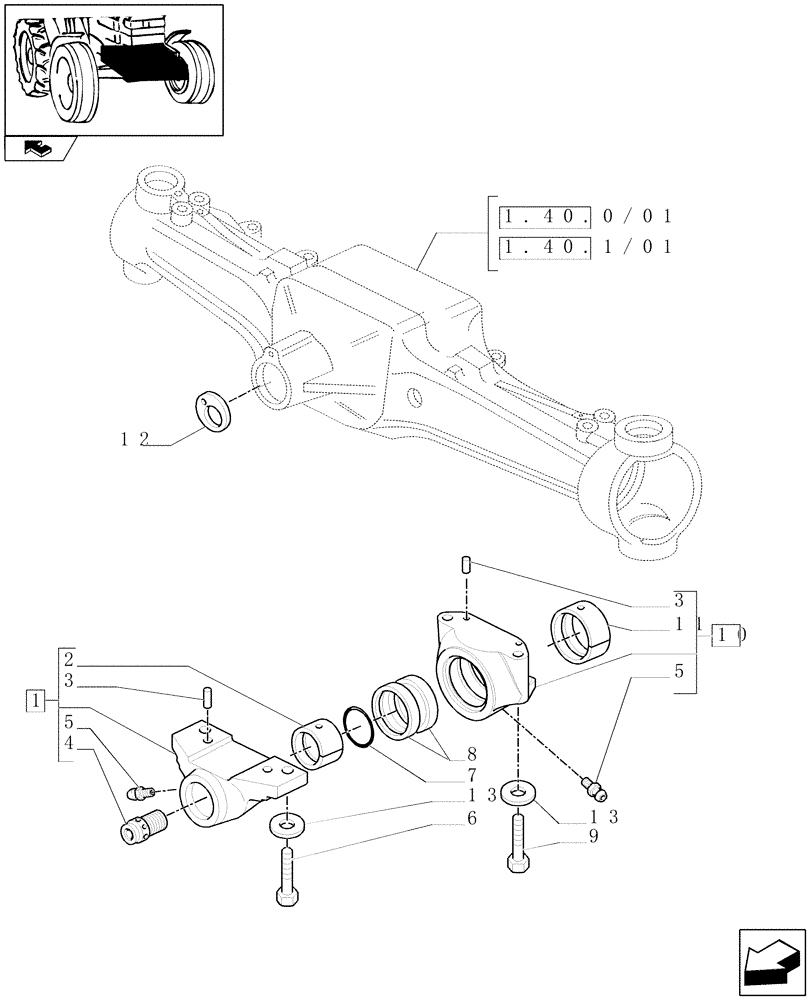

Схема запчастей Case IH PUMA 125 - (1.21.1[02]) - 4WD SUPPORT FOR FRONT AXLE (04) - FRONT AXLE & STEERING
5
1.40.1/01
1.40.0/01
13
5
12
10
3
1
2
8
3
6
9
home
11
4
7
13

Артикул

Название

Примечание

Количество

1

87311589

TRUNNION

ASSY

1шт.

2

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

3

10837710

DOWEL,M10 x 25

4шт.

4

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

15222234

BOLT,Hex, M18 x 70mm, Cl 10.9, Full Thd

2шт.

7

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

8

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

2шт.

CL.3 Front Axle

1шт.

8

5188607

SEAL,115.5mm ID x 130mm OD x 7.5mm Thk

2шт.

CL.4 Front Axle

1шт.

9

15223534

BOLT,Hex, M18 x 140mm, Cl 10.9, Full Thd

2шт.

10

87515300

TRUNNION

ASSY

1шт.

CL.3 Front Axle

1шт.

10

87311603

TRUNNION

ASSY

1шт.

CL.4 Front Axle

1шт.

11

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

CL.3 Front Axle

1шт.

11

5140589

BUSHING,115.64mm ID x 120.19mm OD x 52mm L

1шт.

CL.4 Front Axle

1шт.

12

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

13

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

Выбрано товаров: 22
