Запчасти Case IH PUMA 125 (1.29.7[03]) - SEMI POWER SHIFT - TRANSMISSION LUBRICATION SYSTEM - PIPES - C5833 (03) - TRANSMISSION

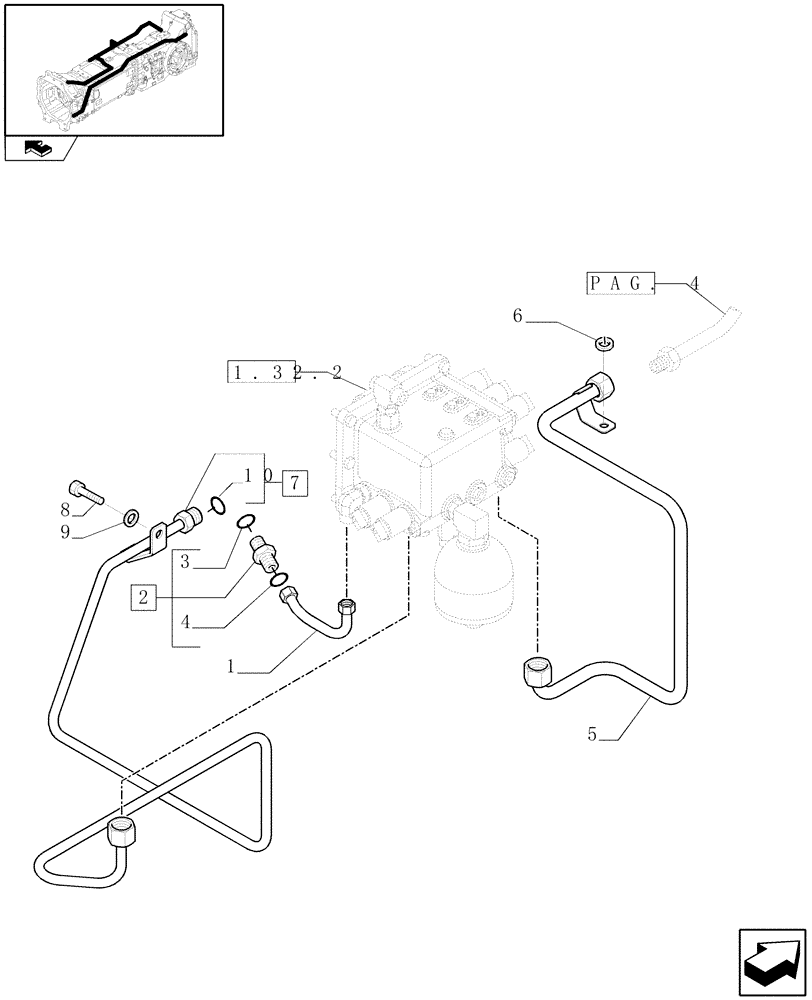

Схема запчастей Case IH PUMA 125 - (1.29.7[03]) - SEMI POWER SHIFT - TRANSMISSION LUBRICATION SYSTEM - PIPES - C5833 (03) - TRANSMISSION
2
8
1.32.2
home
pag. 4
6
10
3
9
4
5
1
7

Артикул

Название

Примечание

Количество

1

87580026

PIPE

Residual Flow

1шт.

2

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

87519202

PIPE

1шт.

Rear Delivery Pipe to Oil Cooler

1шт.

6

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

7

87519194

PIPE

Differential Lock, Front

1шт.

8

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

9

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

10

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

Выбрано товаров: 11
