Запчасти Case IH PUMA 125 (1.29.7[01A]) - SEMI POWER SHIFT - TRANSMISSION LUBRICATION SYSTEM - PIPES - D5876 (03) - TRANSMISSION

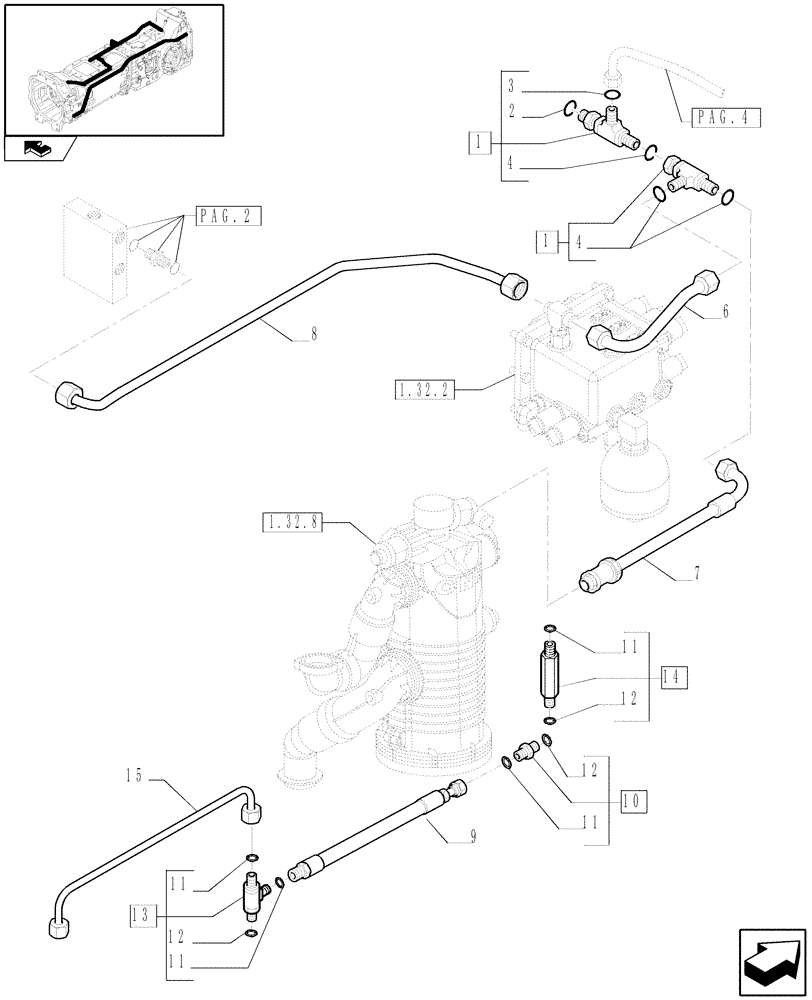

Схема запчастей Case IH PUMA 125 - (1.29.7[01A]) - SEMI POWER SHIFT - TRANSMISSION LUBRICATION SYSTEM - PIPES - D5876 (03) - TRANSMISSION
15
pag.4
pag.2
home
12
12
14
8
4
11
4
12
11
13
10
11
6
1
9
7
1.32.2
1.32.8
3
1
11
2

Артикул

Название

Примечание

Количество

1

87347550

HYD CONNECTOR,1"14 x 1"3/16 -12 x M22 x 1.5

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

5

47134655

TEE,1"-14 ORFS x 1"-14 ORFS x 1"-14

1шт.

6

87519183

PIPE

Discharge Oil Cooler

1шт.

7

87519213

PIPE

Added Lube

1шт.

8

87570549

PIPE

Front Lube

1шт.

9

87722392

HOSE,13mm ID x 267mm L, SAE 100R3

Brake Lube

1шт.

10

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

12

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

13

87722406

HYD CONNECTOR

11/16-M16 x 1.5

1шт.

14

87519162

HYD CONNECTOR

1шт.

15

87722393

PIPE

Left Brake Lube

1шт.

Выбрано товаров: 15
