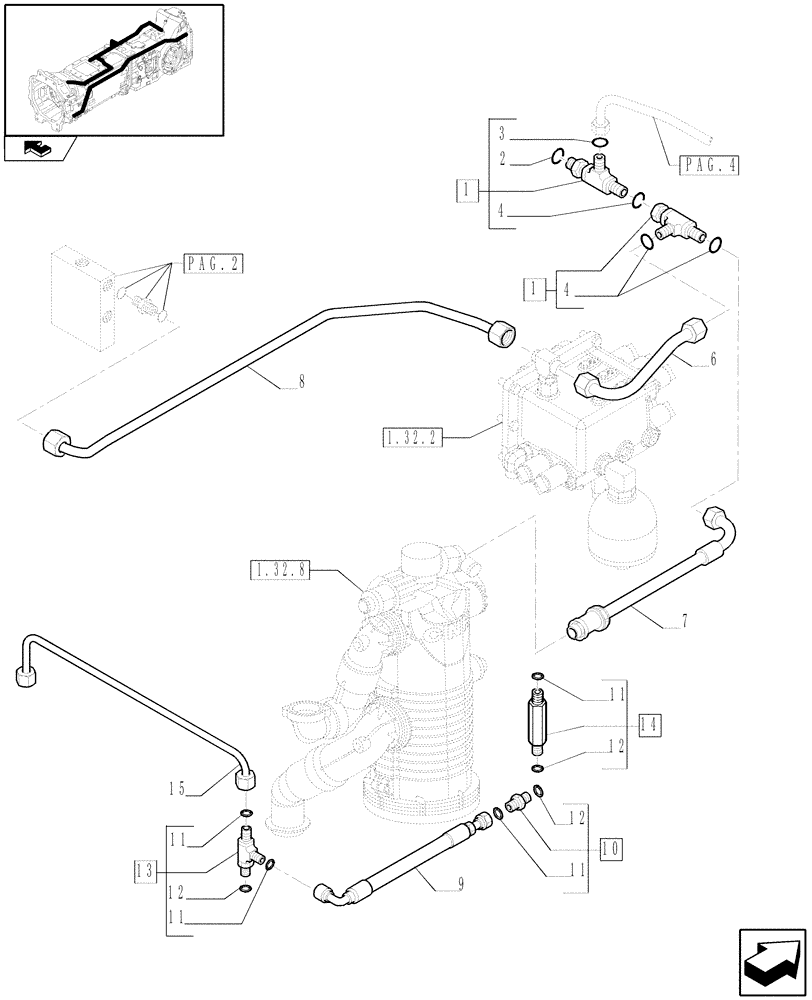

Запчасти Case IH PUMA 125 (1.29.7[01]) - TRANSMISSION LUBRICATION SYSTEM - PIPES - C5876 (03) - TRANSMISSION

1

87347550

HYD CONNECTOR,1"14 x 1"3/16 -12 x M22 x 1.5

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

5

47134655

TEE,1"-14 ORFS x 1"-14 ORFS x 1"-14

1шт.

6

87519183

PIPE

Discharge Oil Cooler

1шт.

7

87519213

PIPE

Added Lube

1шт.

8

87570549

PIPE

Front Lube

1шт.

9

87570485

HOSE

Brake Lube

1шт.

10

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

11/16 - 16

1шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

4шт.

12

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

13

87336785

HYD CONNECTOR,11/16"-16 ORFS x 11/16"-16 ORFS x M16 x 1.5 ORB

11/16-M16 x 1.5

1шт.

14

87519162

HYD CONNECTOR

1шт.

15

87519171

PIPE

Left Brake Lube

1шт.
