Запчасти Case IH PUMA 115 (1.17.0[02]) - DEHYDRATING FILTER FOR AIR CONDITIONED - C6663 (02) - ENGINE EQUIPMENT

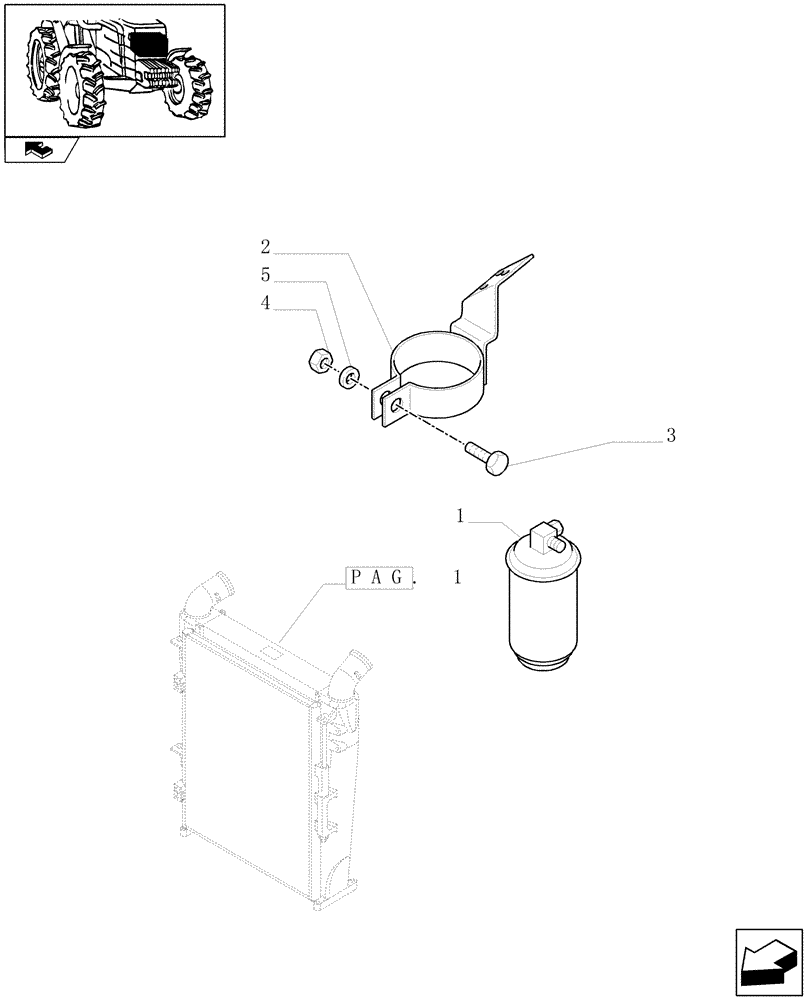

Схема запчастей Case IH PUMA 115 - (1.17.0[02]) - DEHYDRATING FILTER FOR AIR CONDITIONED - C6663 (02) - ENGINE EQUIPMENT
home
pag. 1
2
1
4
3
5

Артикул

Название

Примечание

Количество

1

87374420

RECEIVER-DRYER

1шт.

2

87530594

BRACKET

1шт.

3

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

5

10516474

LOCK WASHER

1шт.

Выбрано товаров: 5
