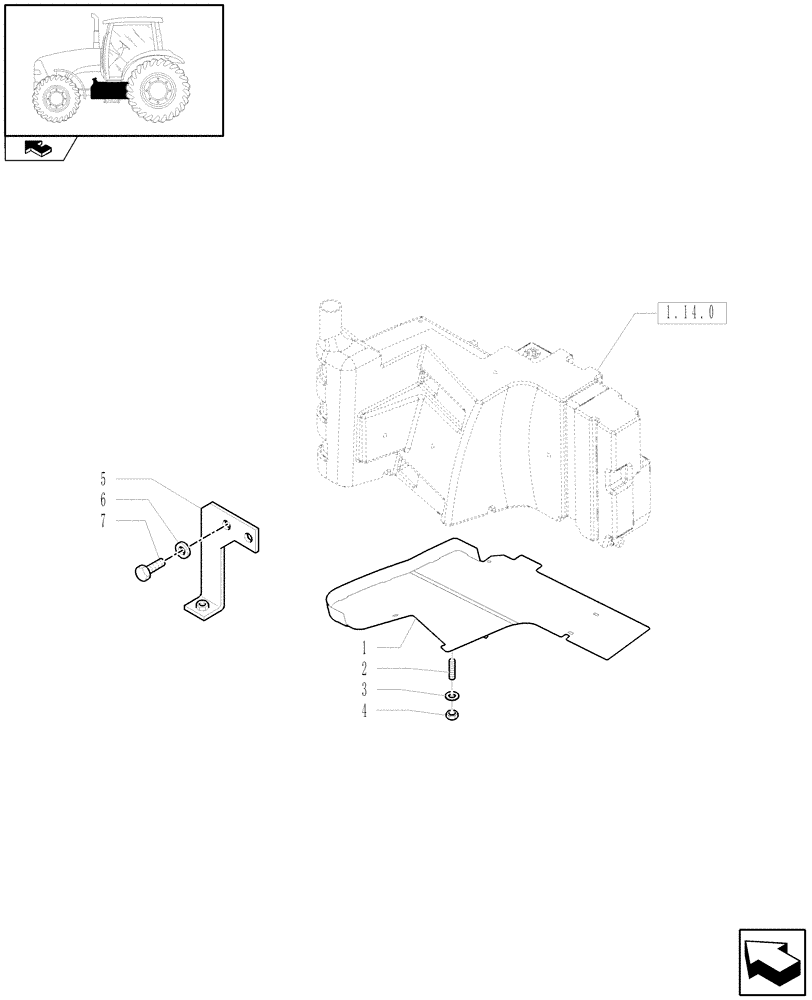

Запчасти Case IH PUMA 115 (1.14.7/01) - FUEL TANK GUARDS (VAR.330142) (02) - ENGINE EQUIPMENT

1

87570828

SHIELD

1шт.

2

82008683

STUD,M10 x 1.25 x 40mm L

4шт.

3

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

4

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

5

87571013

SUPPORT

1шт.

6

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

13x24x2.5MM

2шт.

7

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

M12x25

2шт.
