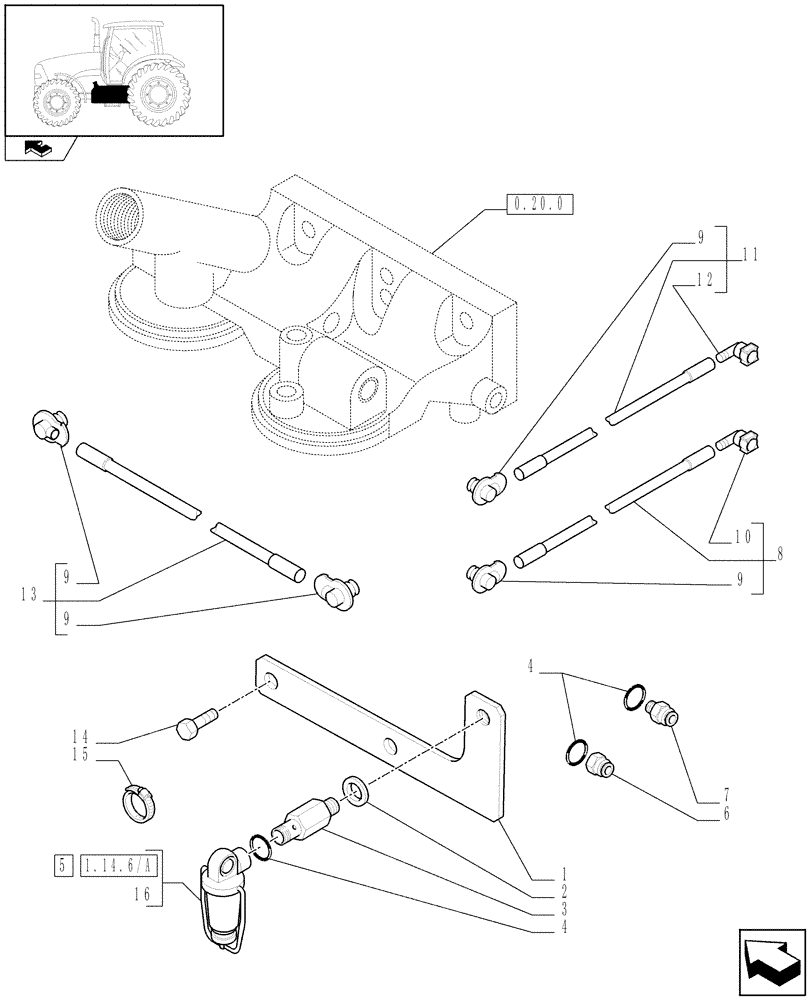

Запчасти Case IH PUMA 115 (1.14.6) - FUEL LINES (02) - ENGINE EQUIPMENT

1

87591419

HOLDER

1шт.

2

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

(Bolt dia. M12 x 24 x 2.8)

1шт.

3

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

12x1.75

1шт.

4

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

D=14MM

3шт.

5

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

ASSY., Biodiesel compatible, Start Serial: D6809

1шт.

6

87585673

HYD CONNECTOR

14x1.5

1шт.

7

4893833

HYD CONNECTOR

14x1.5

1шт.

8

87370924

TUBE,8 mm DIA x 900, 100 mm L

FEED, 900MM

1шт.

9

82028482

FITTING

4шт.

10

82028479

FITTING

Red

1шт.

11

82028475

FUEL TUBE,8mm OD X 960 mm

Return, 960MM

1шт.

12

82028480

COUPLING, QUICK, FEM

Green

1шт.

13

87591975

TUBE,8 mm OD x 550 mm L

Feed, 550MM

1шт.

14

86507087

BOLT,Hex Flg, M12 x 20mm, Stainless

2шт.

15

82013031

CABLE TIE,193mm L

CABLE STRAP

3шт.

16

87592298

FILTER ASSY

1шт.
