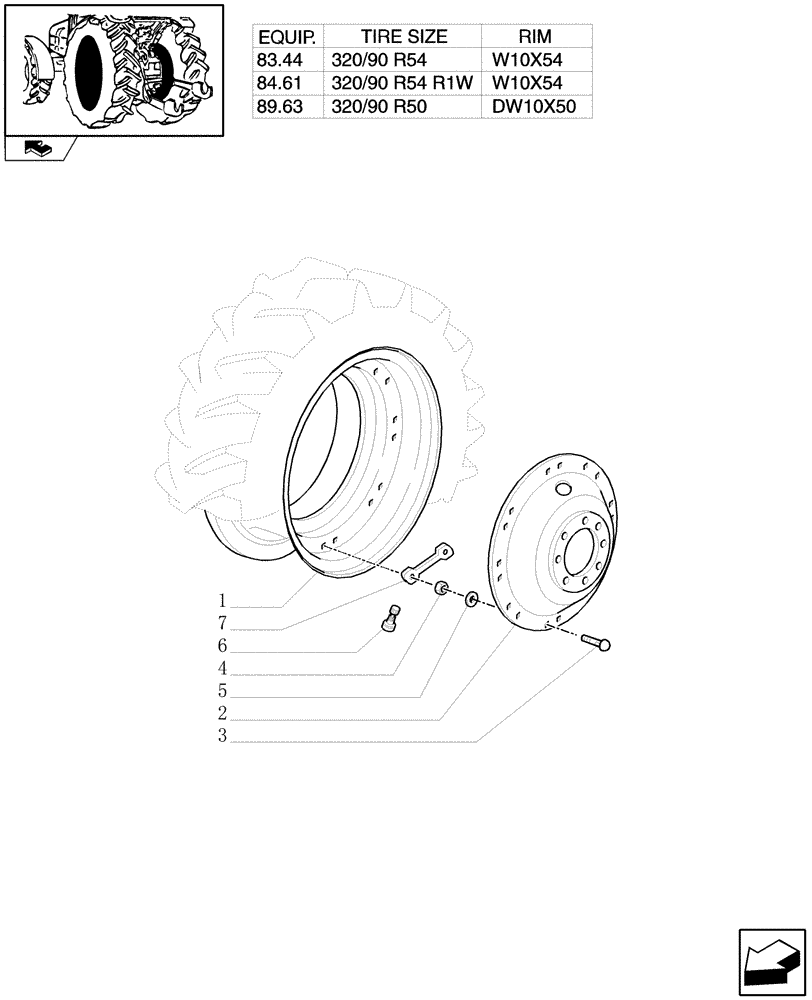

Запчасти Case IH PUMA 115 (83.00[02]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

82037317

RIM,DW10X50, 254mm W, 16 Bolts, Case Silver

DW10 x 50

2шт.

1

82031163

RIM,DW10X54, 245mm W, 8 Bolts, Case Silver

W10x54

2шт.

2

82031197

DISC,950mm D, 16 Bolts, Case Silver

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

32шт.

4

12164124

NUT,M16 x 1.5, Cl 8

32шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

32шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

82018745

SPACER

16шт.
