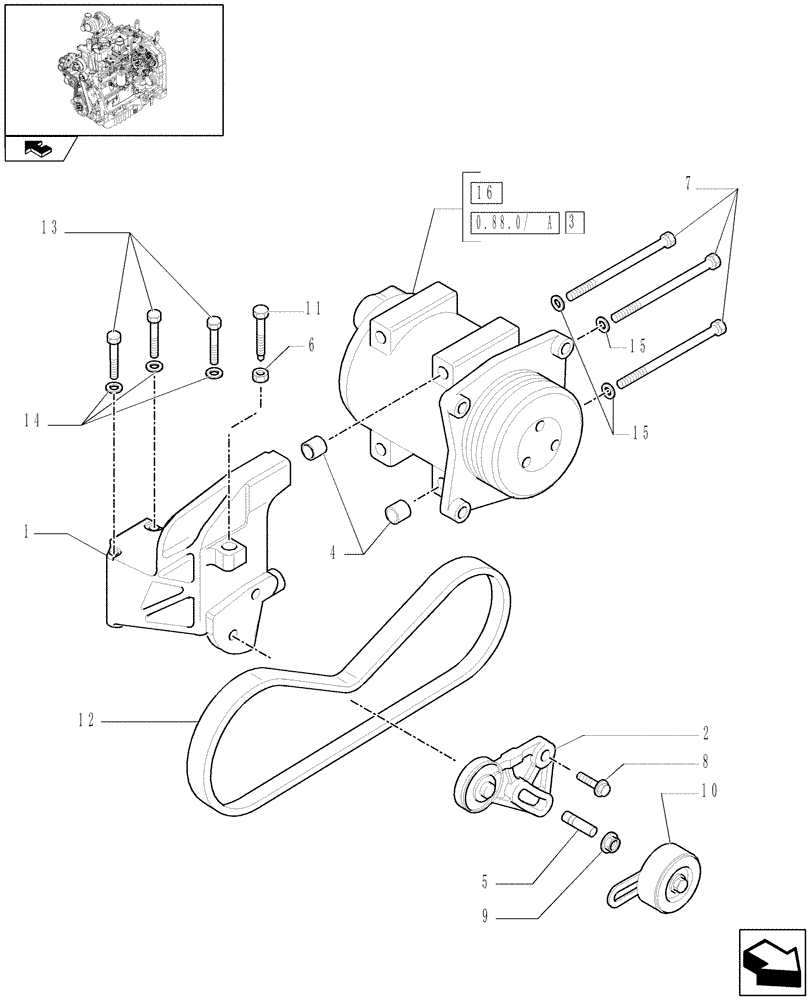

Запчасти Case IH PUMA 115 (0.88.0) - COMPRESSOR, AIR CONDITIONING (01) - ENGINE

1

87377961

SUPPORT

1шт.

2

87803498

BRACKET

1шт.

3

87802912

AIRCOND. COMPRESSOR

ASSY, Serial Range: -C5908

1шт.

3

87709785R

REMAN-A/C COMPRESSOR

1шт.

3

87709785C

CORE-COMPRESSOR

Return Number, AIR COMPRESSOR

1шт.

3

47808999R

REMAN-A/C COMPRESSOR

Reman Compressor

1шт.

3

47808999C

CORE-A/C COMPRESSOR

Core Return Number

1шт.

4

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.

5

4899402

STUD,M10 x 1.5 x 45.00mm

1шт.

6

15500121

NUT

M10

1шт.

7

16046131

SCREW,Hex, M8 x 100mm, Cl 10.9

3шт.

8

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

1шт.

9

87803278

FLANGE NUT

M10

1шт.

10

87803152

IDLER,65mm OD

1шт.

11

4899843

SCREW,Hex, M10 x 1.5 x 80

1шт.

12

87710661

V-BELT,3.56 mm W x 990.00 mm L, 4 Ribs

1шт.

13

87032337

BOLT,Hex, M10 x 40mm, Cl 10.9

3шт.

13

87015921

BOLT,Hex, M10 x 75mm, Cl 10.9

2шт.

14

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

15

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

16

87709785

AIRCOND. COMPRESSOR,12V, 43W, W/ Pulley

, Start Serial: D5908

1шт.

16

87709785GV

AIR COMPRESSOR

Value

1шт.

16

87709785R

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor

1шт.

16

87709785C

CORE-COMPRESSOR

Return Number, AIR COMPRESSOR

1шт.
