Запчасти Case IH PUMA 115 (1.97.0/01) - ELECTRONIC LIFT CONTROL (VAR.331021-331022-331023) (10) - OPERATORS PLATFORM/CAB

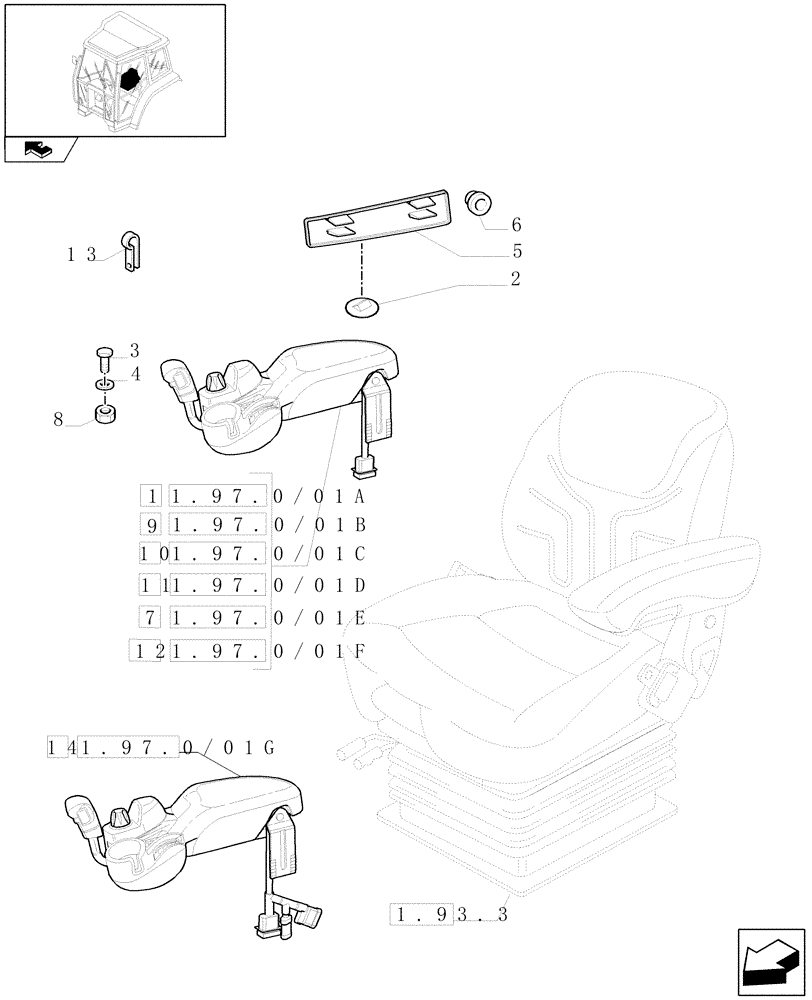

Схема запчастей Case IH PUMA 115 - (1.97.0/01) - ELECTRONIC LIFT CONTROL (VAR.331021-331022-331023) (10) - OPERATORS PLATFORM/CAB
12
14
11
13
2
1
1.93.3
9
5
7
4
6
8
1.97.0/01a
home
1.97.0/01f
1.97.0/01e
1.97.0/01d
1.97.0/01c
1.97.0/01b
1.97.0/01g
3
10

Артикул

Название

Примечание

Количество

1

87565026

ARMREST ASSY.

, Serial Range: -C5817

1шт.

With Radar, less HTS only, for FPS, VAR.331021

1шт.

2

47057509

FASTENER

2шт.

3

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

4

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

1шт.

5

87385341

BLANK-OFF PLUG,3.5mm Thk, Black

1шт.

6

81862738

PLUG,M38 x 28 x 5mm

28MM

3шт.

7

87676403

ARMREST ASSY.

, Serial Range: D5817-C6335

1шт.

With HTS and Radar only, for FPS, VAR.331023

1шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

9

87525234

ARMREST ASSY.

, Serial Range: -C5817

1шт.

With HTS, less Radar only, for FPS, VAR.331022

1шт.

10

87525233

ARMREST ASSY.

, Serial Range: -C5817

1шт.

With HTS and Radar only, for FPS, VAR.331023

1шт.

11

87676407

ARMREST ASSY.

, Serial Range: D5817-C6335

1шт.

With HTS, less Radar only, for FPS, VAR.331022

1шт.

12

87676401

ARMREST ASSY.

, Serial Range: D5817-C6220

1шт.

With Radar, less HTS only, for FPS, VAR.331021

1шт.

12

87676403

ARMREST ASSY.

, Serial Range: D6220-C6303

1шт.

With Radar, less HTS only, for FPS, VAR.331021

1шт.

13

82033477

CLIP

1шт.

14

87483887

ARMREST ASSY.

, Start Serial: D6303

1шт.

With Radar, less HTS only, for FPS, VAR.331021

1шт.

15

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

16

14183674

SPRING NUT,M4.8, Push

2шт.

Выбрано товаров: 26
