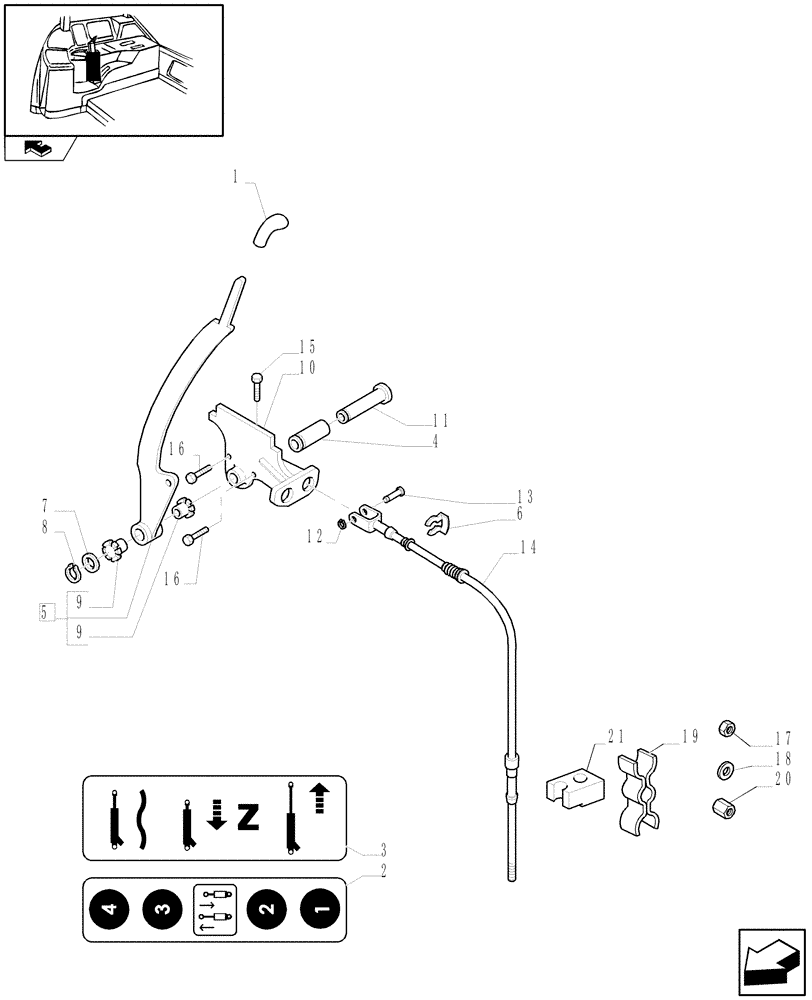

Запчасти Case IH PUMA 115 (1.96.2/06) - 3 REAR CONTROL VALVES - CONTROL VALVE CONTROL (VAR.333844) (10) - OPERATORS PLATFORM/CAB

1

82037912

KNOB

3th Control Valve

1шт.

2

82034262

DECAL

1шт.

3

87556505

DECAL

1шт.

4

82035996

SPACER,12mm ID x 20mm OD x 26mm L

1шт.

5

82036839

LEVER

1шт.

6

82007837

LOCKING RING

1шт.

7

81819651

SPRING WASHER,13mm ID x 19mm OD

1шт.

8

11088171

SNAP RING,M11

1шт.

9

82035633

BUSHING

2шт.

10

87308465

HOUSING

2шт.

11

82035628

HEADED PIN,11.98mm OD x 95mm L

1шт.

12

11087776

CIRCLIP,Ext., M6, BLO

1шт.

13

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

1шт.

14

87525209

CABLE,1828mm L

1шт.

15

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

16

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

17

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

18

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2.8x17

2шт.

19

5191951

CLAMP,3 Hoses

1шт.

20

82012528

NUT,Hex, M6 x 1

3шт.

21

47132225

BRACKET

1шт.
