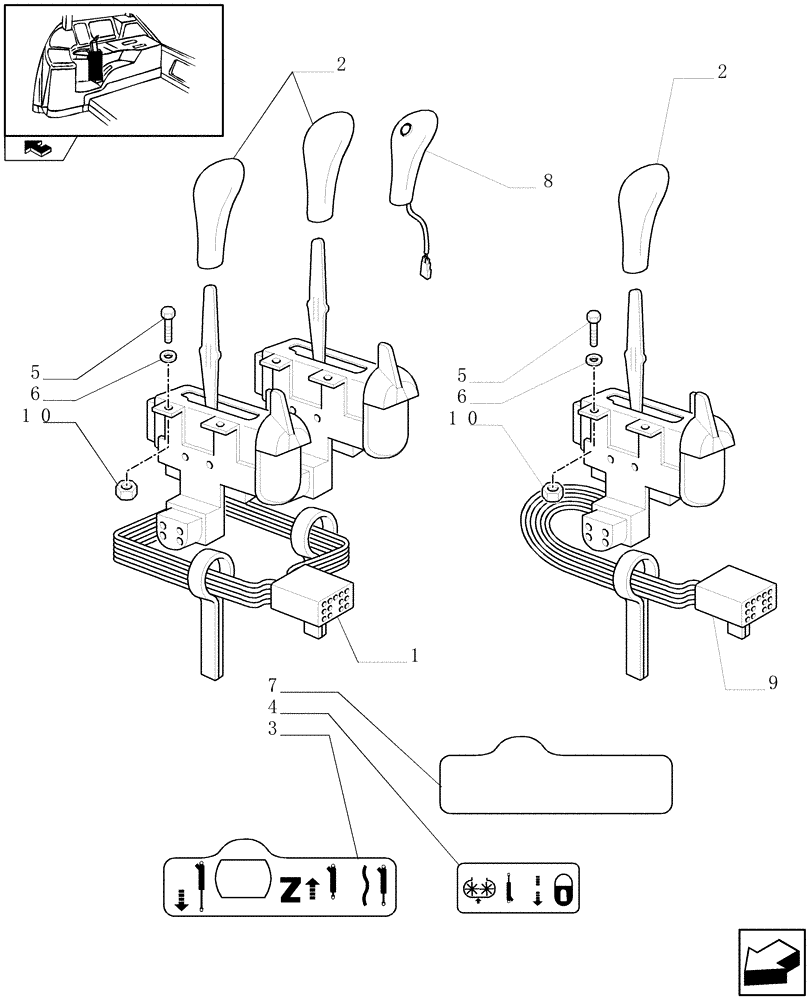

Запчасти Case IH PUMA 115 (1.96.2/03) - ELECTRONIC CONTROL VALVES - CONTROL VALVE CONTROL (VAR.330853-330856-330862-331862) (10) - OPERATORS PLATFORM/CAB

1

87395799

ELECTRO-VALVE

1шт.

Q.ty=4 for VAR.330862, 331862

1шт.

Will fix two remotes.

1шт.

2

82037910

KNOB

1st REMOTE

1шт.

2

82037911

KNOB

2nd REMOTE

1шт.

2

82037912

KNOB

3rd REMOTE, VAR.330856, 330862,331862

1шт.

2

82037913

KNOB

4th REMOTE, VAR.330862, 331862

1шт.

3

82039094

DECAL

2шт.

Q.ty=3 for VAR.330856

1шт.

Q.ty=2 for VAR.330862-331862

1шт.

3

87556509

DECAL

2шт.

For VAR.330853, 331862

1шт.

4

82036264

DECAL

2шт.

Q.ty=3 for VAR.330856

1шт.

Q.ty=2 for VAR.330862-331862

1шт.

4

87556504

DECAL

2шт.

For VAR.330853, 331862

1шт.

5

13271917

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

8шт.

5

13299314

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 5.8

M5x14

6шт.

5

13299414

SCREW,Pozidriv Flat Hd, Csk, M5 x 16mm, Cl 5.8

M5x16, VAR.330862, 331862

8шт.

6

10571374

LOCK WASHER

8шт.

6

12605274

WASHER

8шт.

7

82034262

DECAL

VAR.330856-330862

1шт.

8

87317960

SWITCH ASSY

VAR.331862

1шт.

9

87395800

ELECTRO-VALVE

VAR.330856

1шт.

10

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

8шт.
