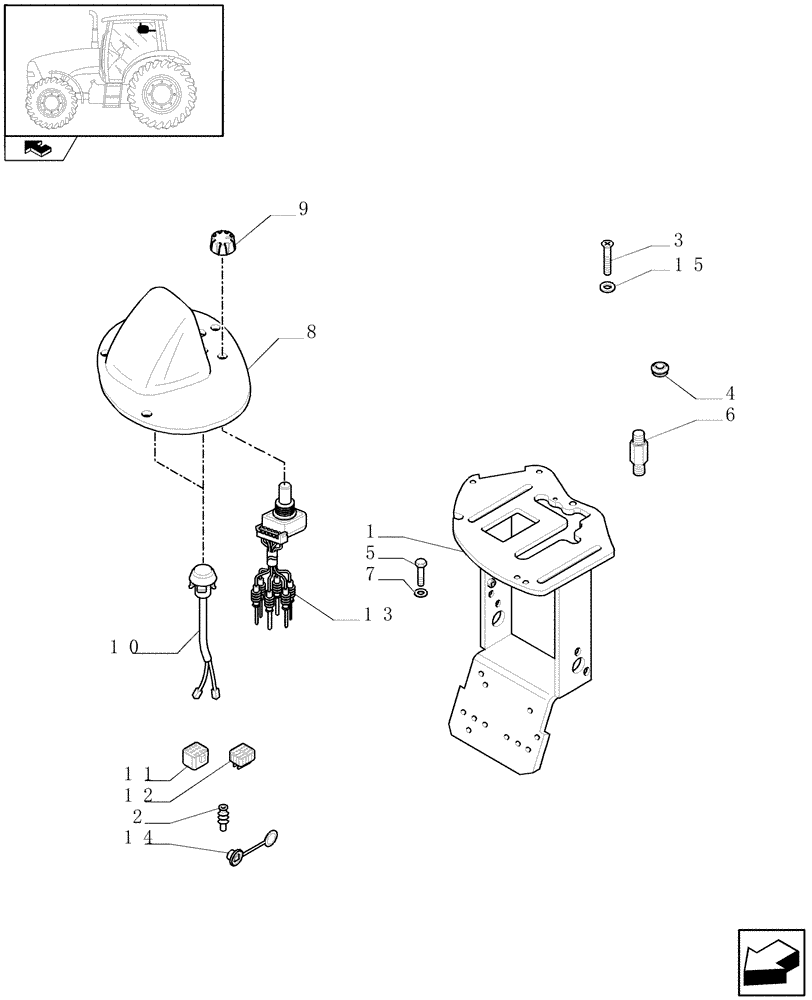

Запчасти Case IH PUMA 115 (1.96.0/01[01]) - VIRTUAL TERMINAL (AFS PRO 300) AND REAR ISOBUS - SUPPORT AND CONTROLS (VAR.331761-336761) (10) - OPERATORS PLATFORM/CAB

1

87546064

SUPPORT

1шт.

2

82863647

PLUG

3шт.

3

13274617

SCREW,Pozidriv Pan Hd, M5 x 25mm

3шт.

4

81862738

PLUG,M38 x 28 x 5mm

28MM

4шт.

5

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

6

82025694

SPACER,M8 x 1.25 x 67mm

3шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

8

87536287

COVER ASSY

1шт.

9

87454709

KNOB

1шт.

10

82037344

SWITCH ASSY

2шт.

11

82863652

CONTACT HOUSING,Male, 13 Pole

1шт.

12

82863651

WIRE CONNECTOR

1шт.

13

87388536

SWITCH

Encoder

1шт.

14

87316200

ELEC CONNECTOR

1шт.

15

12624104

WASHER,5.15mm ID x 22mm OD x 2mm Thk

3шт.
