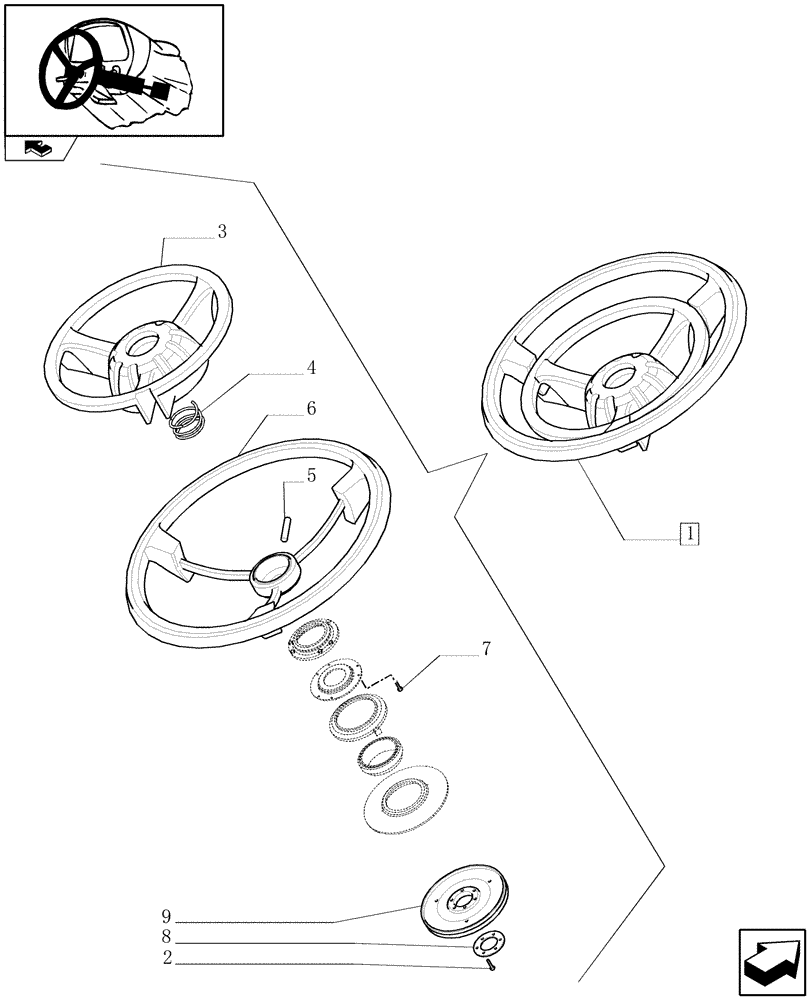

Запчасти Case IH PUMA 115 (1.95.5/01A) - STEERING WHEEL - BREAKDOWN (VAR.330631-336631) (10) - OPERATORS PLATFORM/CAB

1

87330391

STEERING WHEEL

ASSY

1шт.

2

13296214

SCREW,M3 x 12mm

M3x12

6шт.

3

47136221

HANDWHEEL

SNAP RING

1шт.

4

87330373

SPRING

1шт.

5

10333710

PIN,M4 x 20.00mm

4x20

1шт.

6

87330390

STEERING WHEEL

1шт.

7

15914907

SCREW,M4 x 16mm

M4x16

6шт.

8

47136227

FLANGE

1шт.

9

47136230

FLANGE

1шт.
