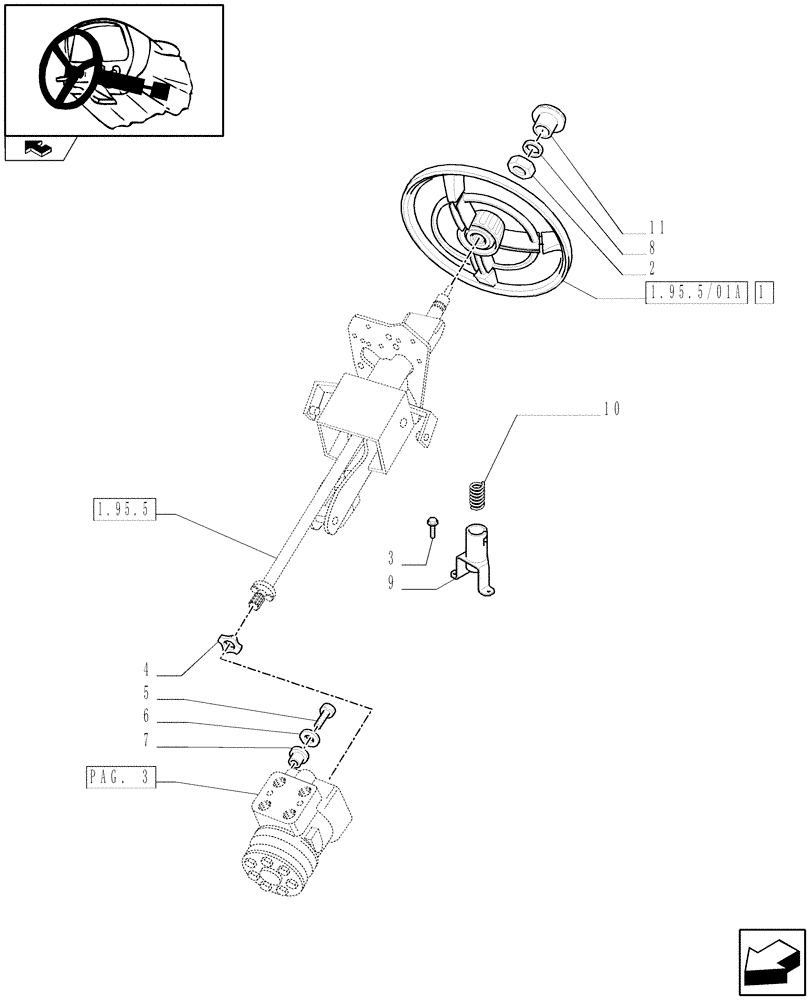

Запчасти Case IH PUMA 115 (1.95.5/01[01]) - FAST STEERING - WHEEL AND COLUMN (VAR.330631-336631) (10) - OPERATORS PLATFORM/CAB

1

87330391

STEERING WHEEL

ASSY

1шт.

2

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

1шт.

3

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

4шт.

4

81873344

RUBBER INSULATOR

1шт.

5

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

4шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

7

82009429

ISOLATOR

4шт.

8

47136225

PLUG

1шт.

9

87314955

BRACKET

, Serial Range: -Z8BL50675

1шт.

9

87650958

BRACKET

, Start Serial: Z8BL50676

1шт.

10

82012555

SPRING

1шт.

11

87350612

KNOB

1шт.
