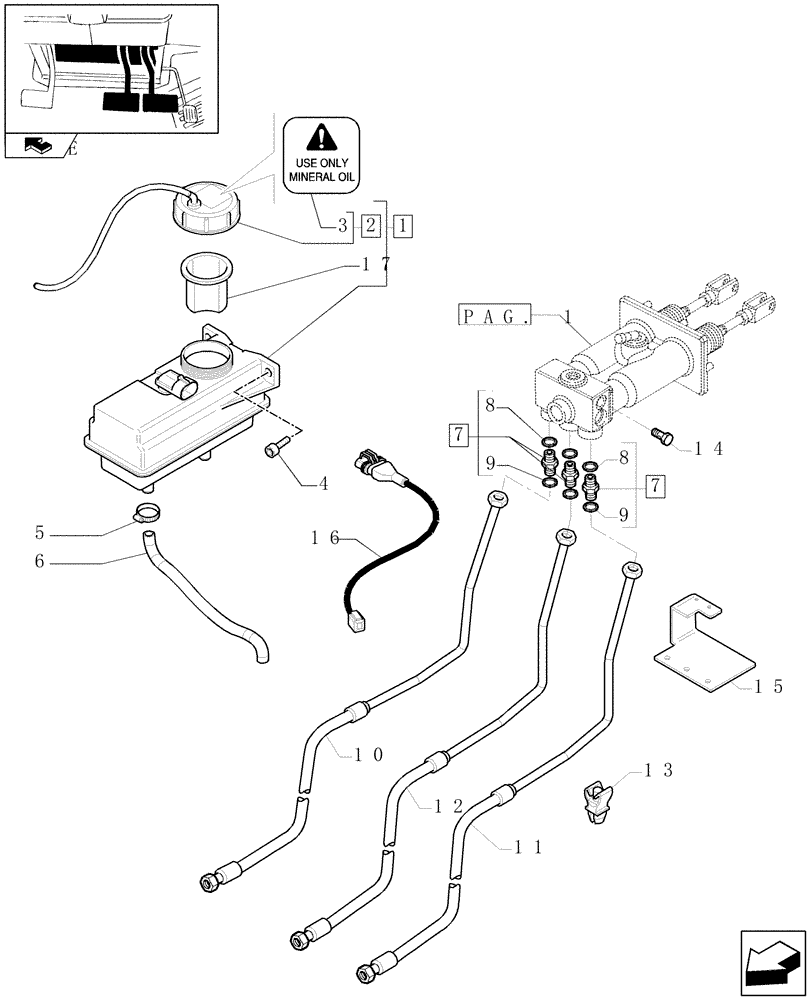

Запчасти Case IH PUMA 115 (1.95.0[02]) - BRAKE PEDALS (10) - OPERATORS PLATFORM/CAB

1

84154075

BRAKE FLUID TANK,0.354L

ASSY, Brake Fluid

1шт.

2

87724875

FILLER CAP

ASSY

1шт.

3

87668076

DECAL

1шт.

4

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

4

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

2шт.

5

81864605

HOSE CLAMP,11.5mm - 14.75mm

3шт.

6

87715990

FLEXIBLE HOSE,7.60mm ID x 325.00mm

1шт.

7

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

3шт.

7

87705105

HYD CONNECTOR

, Start Serial: D5839

1шт.

Valid for Var.330718, 330720, 331723

1шт.

8

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

10

87633002

HYD TUBE,8 mm OD

RH

1шт.

10

87356970

TUBE,480 mm L

RH

1шт.

With Suspended Cab, VAR.330658, 331658

1шт.

11

87633045

TUBE

LH, Serial Range: -C5839

1шт.

11

87356972

TUBE,6 mm ID x 8 mm OD x 955 mm L

LH

1шт.

With Suspended Cab, VAR.330658, 331658

1шт.

11

87703932

TUBE,8 mm OD

LH, Start Serial: D5839

1шт.

12

87633046

TUBE,555 mm L

Trailer Brakes

1шт.

12

87356975

TUBE,6 mm ID x 8 mm OD x 1009 mm L

Trailer Brakes

1шт.

With Suspended Cab, VAR.330658, 331658

1шт.

12

87703933

BRAKE LINE,6 mm OD

Trailer Brakes, Start Serial: D5839

1шт.

Valid for Var.330718, 330720, 331723

1шт.

13

87313304

CLIP

3шт.

13

87710266

CLIP,6mm

, Start Serial: D5839

1шт.

Valid for Var.330718, 330720, 331723

1шт.

14

81864448

PLUG

2шт.

15

87565907

SUPPORT

1шт.

16

87666240

WIRE HARNESS

1шт.

17

87491693

FILTER

1шт.
