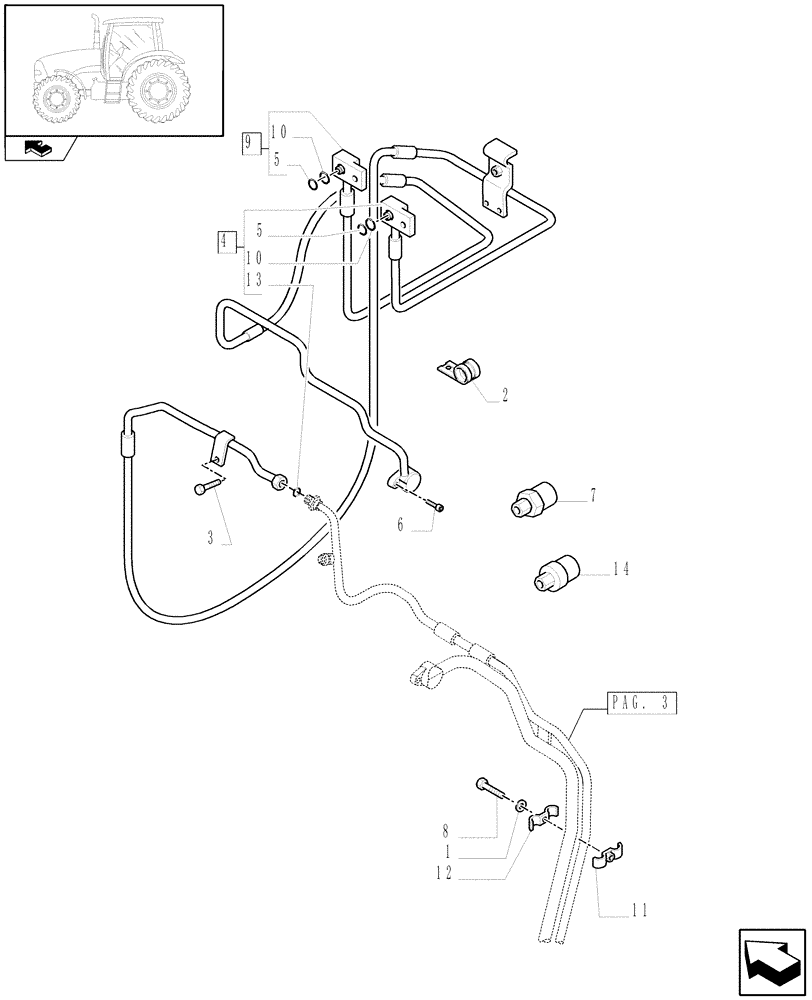

Запчасти Case IH PUMA 115 (1.94.3[04]) - AIR CONDITIONING SYSTEM PIPES - C6663 (10) - OPERATORS PLATFORM/CAB

1

14497801

WASHER

Int T, M5

1шт.

2

87331631

CLAMP

1шт.

3

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

4

87641058

A/C HOSE

1шт.

5

10319183

O-RING,13.1mm ID x 1.6mm Width

5/16" ID x .070" Thk, Green

2шт.

6

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

7

82019426

SWITCH ASSY

High Pressure, Serial Range: -C5854

1шт.

8

10978024

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

1шт.

9

87699665

PIPE

1шт.

10

14450683

O-RING,10.8mm ID x 2.4mm Width

.426" ID x .070" Thk

2шт.

11

82033450

CLAMP

1шт.

12

82036409

CLAMP BRACKET

1шт.

13

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

14

87699591

SWITCH ASSY

High Pressure, Serial Range: D5854-C5942

1шт.

14

87000227

SWITCH, A/C HIGH PRE

, Start Serial: D5942

1шт.
